Felt Blankets · Nomex · Polyester
4000 g/m² Needled Felt Blanket
Rated to 160°C / 240°C
4000 g/m² mono-turn needled padding that wraps a large flatwork ironer roll in one turn.
Nomex up to 240°C, polyester up to 160°C. 18–20mm thick.
Mono-turn ironer padding
4000 g/m² mono-turn padding for large flatwork ironers
One thick wrap instead of several thin layers.
This padding is 18–20mm thick and weighs 4000 g/m².
It wraps the roll of a large flatwork ironer in a single turn, on top of the springs.

240°C
Nomex version, maximum
160°C
Polyester version, maximum
4000
Weight, g/m²

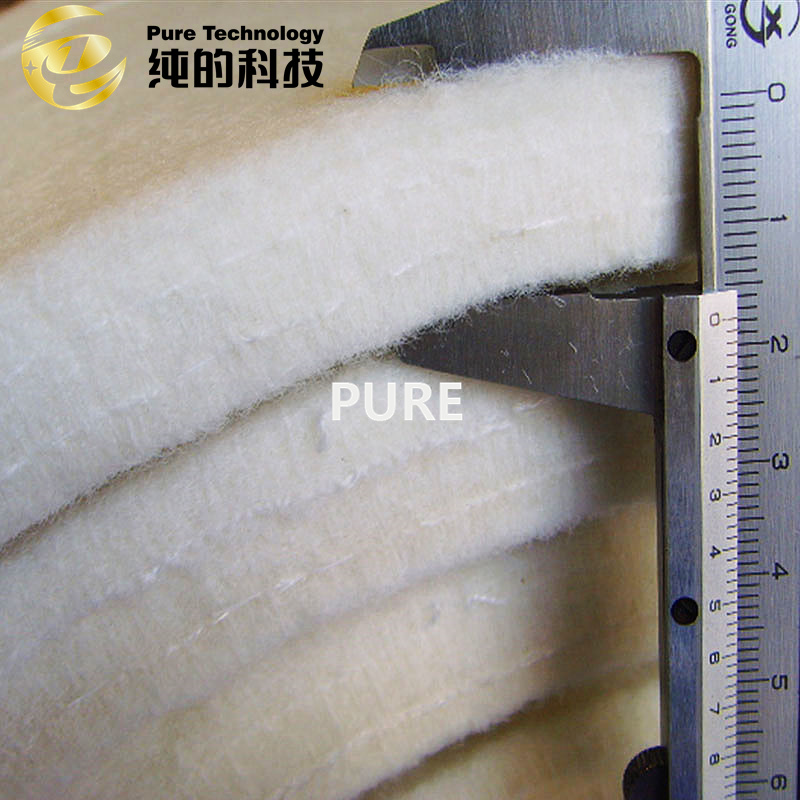

18–20mm
Thickness
Specifications
Mono-turn ironer padding specifications
Every roll is made to your ironer.
Choose Nomex or polyester.
| Model number | Ironer-MTN |
|---|---|
| Type | Mono-turn needled ironer padding |
| Material | 100% Nomex or 100% polyester |
| Colour | Off-white / white |
| Temperature | Nomex: up to 240°C. Polyester: up to 160°C |
| Density | 4000 g/m² |
| Thickness | 18–20mm |
| Width | 3.3m, 3.6m, 3.8m |
| Application | Large flatwork ironers, single-turn wrap |
| Technique | Needle punched |
| Size | Made to order |
| Packing | Carton |
| Brand | PD |
| Origin | Guangdong, China |

Why mono-turn
Why choose mono-turn ironer padding
01
One wrap
A single thick turn replaces several layers of thin padding.
02
Sits on the springs
It goes straight on top of the roll springs of oil-heated ironers.
03
Two fibres
Nomex for ironers up to 240°C, polyester for ironers up to 160°C.

Application
Where mono-turn padding is used
Mono-turn padding wraps the rolls of large flatwork ironers.
On oil-heated ironers it sits on top of the individual springs.
It also suits some calenders.
Our factory
How we make 4000 g/m² mono-turn padding
01
Nomex or polyester fibre
We make it from 100% Nomex or 100% polyester fibre.
Nomex takes more heat. Polyester costs less.
Send the chest temperature and we will pick the fibre for it.


02
Carding
Carding opens the fibre and combs out impurities and short lint.
We control temperature and humidity so the web stays even.
An even web is what keeps the finished felt the same thickness from edge to edge.
03
Web laying and needling
The web is cross-laid until it reaches 4000 g/m².
Heavy needling builds it up to 18–20mm thick.
One turn of this padding does the work of several turns of thinner felt.


04
Surface finish
The face is kept smooth and even across the width.
That is the side the linen runs against.
A smooth face keeps the shrinkage even from edge to edge.
05
Cutting
Padding is cut to 3.3m, 3.6m or 3.8m wide.
Length is made to order.
Send the roll width and we cut the padding to it.


06
Needle check
Every finished piece passes through a metal detector.
No broken needle leaves the factory inside the felt.
A broken needle tip left in the felt would mark your rollers or your product.
Quality
ISO 9001 certified felt factory
We work to an ISO 9001 quality system.
QC staff check the raw fibre and every production step.
Certificates are on file and we can send copies with your quote.
If you need a test report with an order, ask for it before production starts.


Packing
How mono-turn padding is packed
Padding is rolled and wrapped in film.
Rolls then go into cartons for shipping.
Tell us if your forwarder needs different packing and we will pack to that.
Support
Help before and after you order
01
Made to your ironer
Send the ironer make, roll size and working width. We make the belt or padding to match.
02
Matched to the heating
Steam or thermal oil: we match the fibre to how your ironer is heated.
03
The full ironer set
Belts, padding and guide tape come from one supplier, sized for the same machine.
FAQ
Mono-turn ironer padding FAQ
What do you need to quote?
The roll width, the roll size and the fibre you want.
The ironer make and model help. Add your delivery address for shipping.
Nomex or polyester?
Nomex for ironers up to 240°C.
Polyester for ironers up to 160°C.
Does it replace the springs?
No. It sits on top of the springs, in one turn round the roll.
How does ordering work?
We send a quote and an invoice. Production starts when payment arrives.
The balance is paid before shipment.
Which payment methods do you accept?
T/T, PayPal, Western Union and L/C.
Ask us if you need another method.
PD FELT · Foshan, China
Need a custom 4000 g/m² Needled Felt Blanket?
Tell us the machine, the position on the line and the temperature. We make the felt to your drawing.
