480°C
Endless Felt Belts · Kevlar · PBO
Para-aramid Endless Belt For Steel Galvanized Sheet Manufacturing
Rated to 480–650°C
A needled Kevlar or PBO felt belt with metal grommets, for hot galvanized steel sheet lines.
Kevlar 480°C continuous, 500°C max. PBO up to 650°C.
Steel sheet felt belt
Kevlar and PBO felt belts for galvanized steel sheet lines
Hot, freshly coated sheet needs a belt that takes the heat without marking the surface.

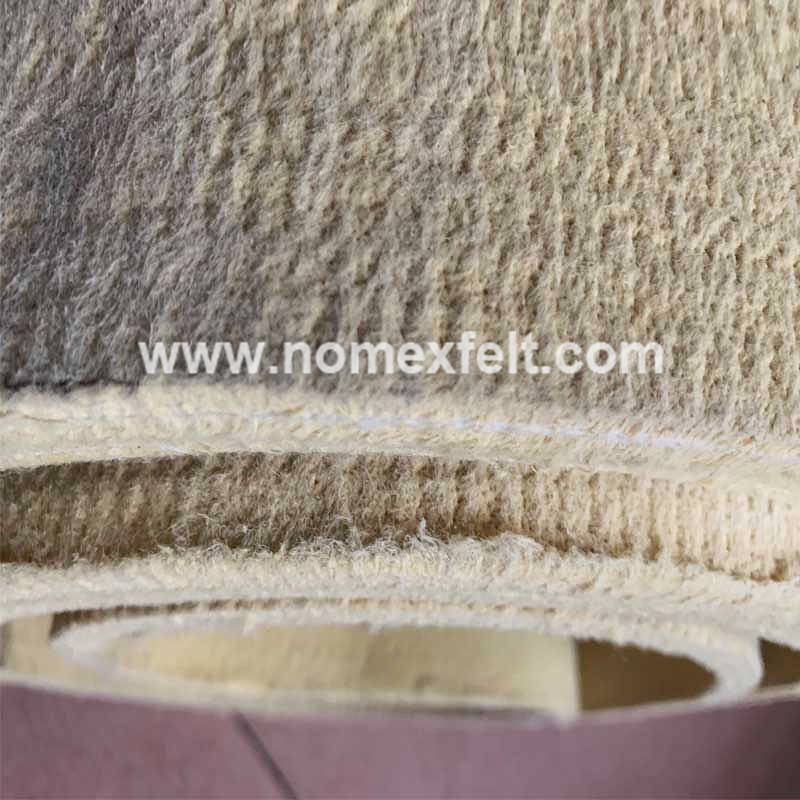

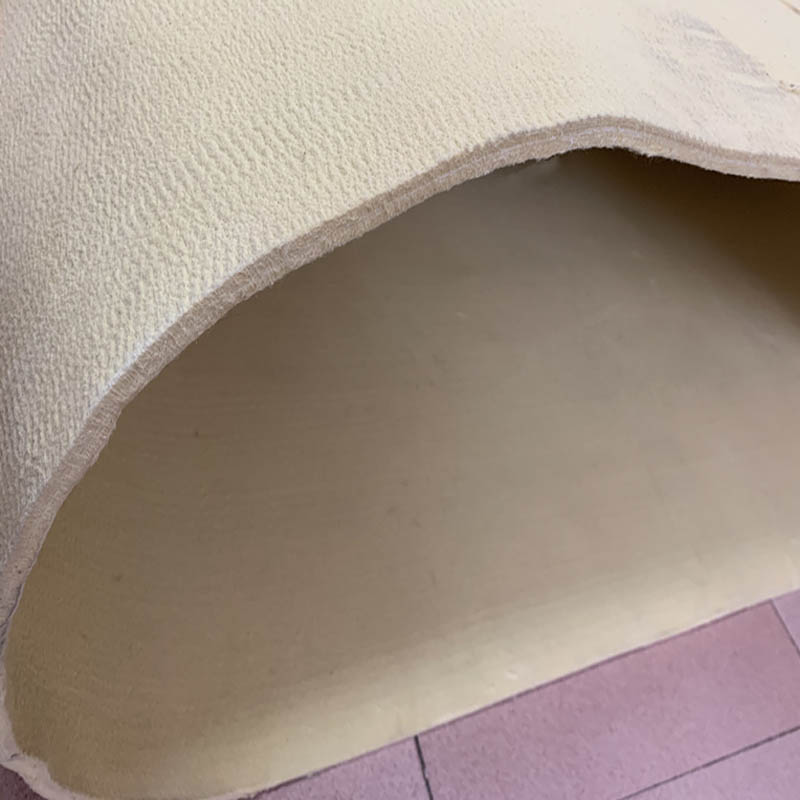

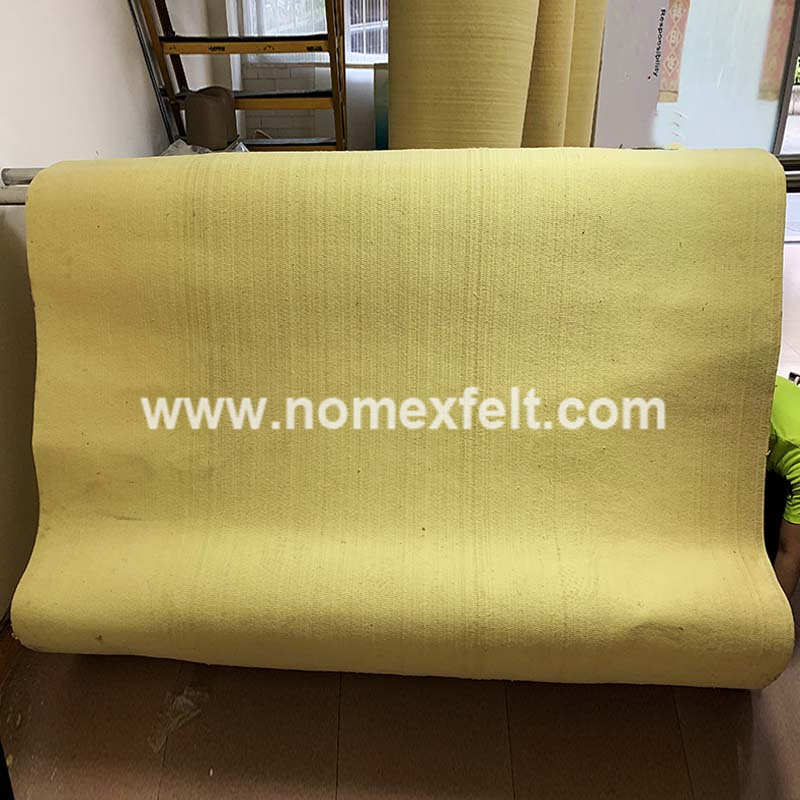

This belt is needle punched from 100% Kevlar or 100% PBO.
It carries hot sheet on galvanizing lines, steel sheet making machines and rolling mills.
480°C
Kevlar, continuous
500°C
Kevlar, maximum
650°C
PBO, maximum
5–15mm
Felt thickness
Specifications
Steel sheet felt belt specifications
Every belt is made to your line.
Metal grommets or eyelets can be fitted at both ends.
| Model number | Belt-SS |
|---|---|
| Type | Felt belt with metal grommets |
| Material | 100% Kevlar (para-aramid) or 100% PBO |
| Colour | Yellow / brown |
| Temperature | Kevlar: 480°C continuous, 500°C max. PBO: up to 650°C |
| Density | 450 g/m²·mm |
| Thickness | 5–15mm |
| Diameter | 1200mm, 1420mm, 1500mm, or to order |
| Application | Galvanizing lines, steel sheet making machines, rolling mills |
| Technique | Needle punched |
| Size | Made to order |
| Packing | Bubble film and woven bag |
| Brand | PD |
| Origin | Guangdong, China |
Why aramid felt
Why choose a Kevlar or PBO steel sheet belt
01
Two heat grades
Kevlar runs at 480°C with peaks to 500°C. PBO goes up to 650°C.
02
Clean on coated sheet
A flat, smooth needled face will not mark galvanized sheet.
03
No broken needles
Every belt is checked so no broken needle stays in the felt.

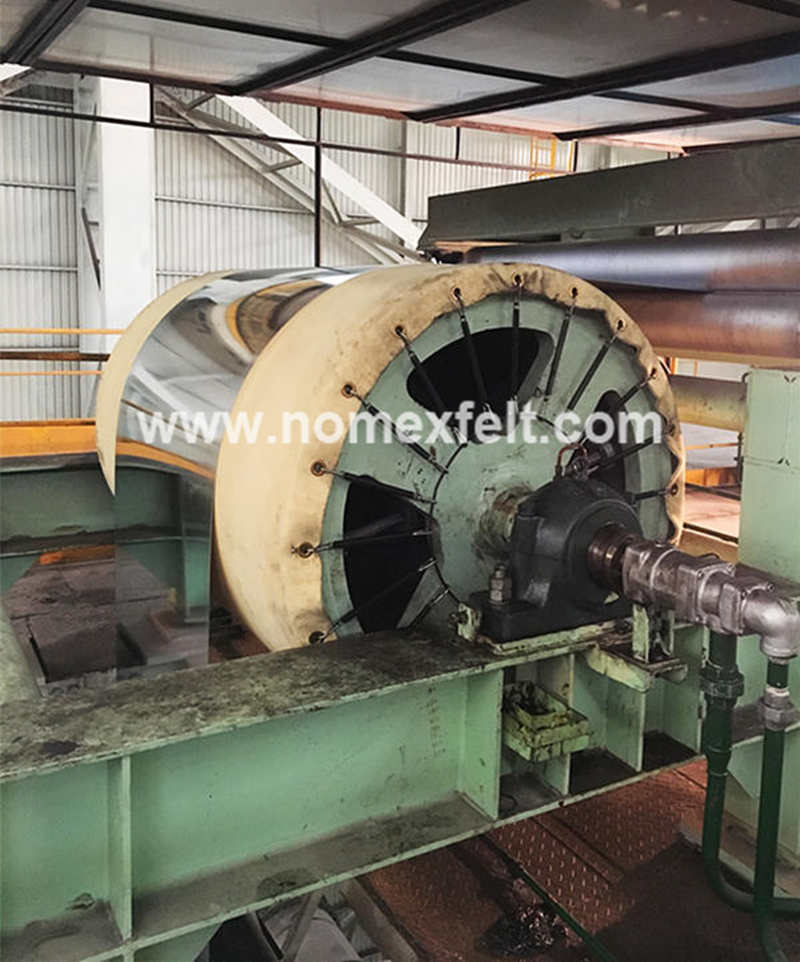

Application
Where steel sheet felt belts run
The belts carry hot sheet on galvanizing lines.
They also run on steel sheet making machines and in rolling mills.
Use PBO where the sheet is hotter than Kevlar can take.
Our factory
How we make steel sheet felt belts
01
Kevlar or PBO fibre
We use 100% Kevlar para-aramid, or 100% PBO for hotter lines.
PBO is the most heat-resistant fibre we use.
Send the line temperature and we will tell you which one pays off.
02
Carding
Carding opens the fibre and combs out impurities and short lint.
We control temperature and humidity so the web stays even.
An even web is what keeps the finished felt the same thickness from edge to edge.
03
Web laying and needling
The web is cross-laid to about 450 g/m² per mm of thickness.
Needle punching builds it from 5mm to 15mm thick.
The thickness you pick depends on the sheet weight and the roller size.
04

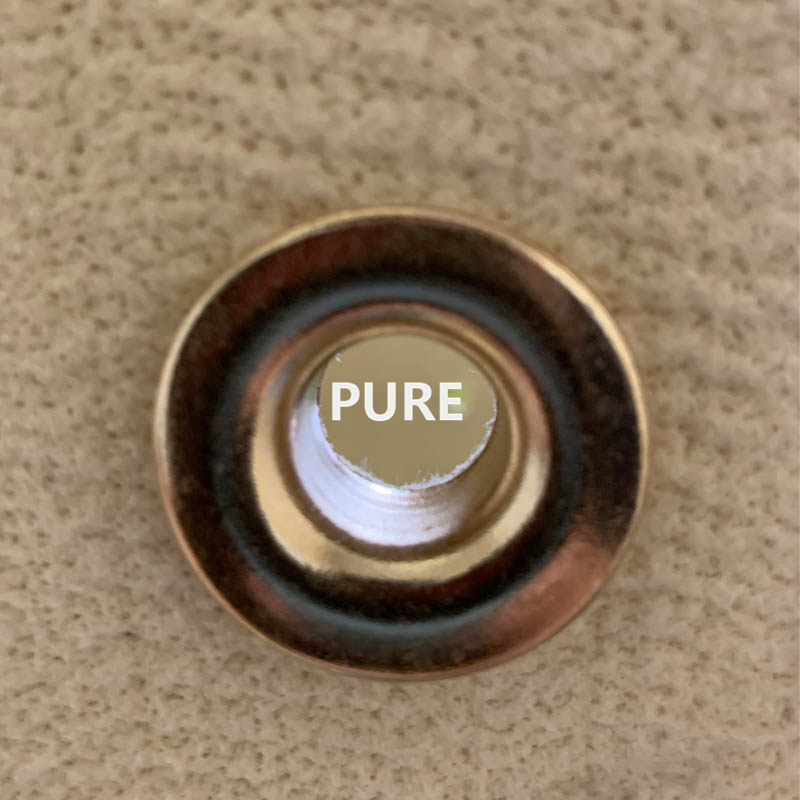

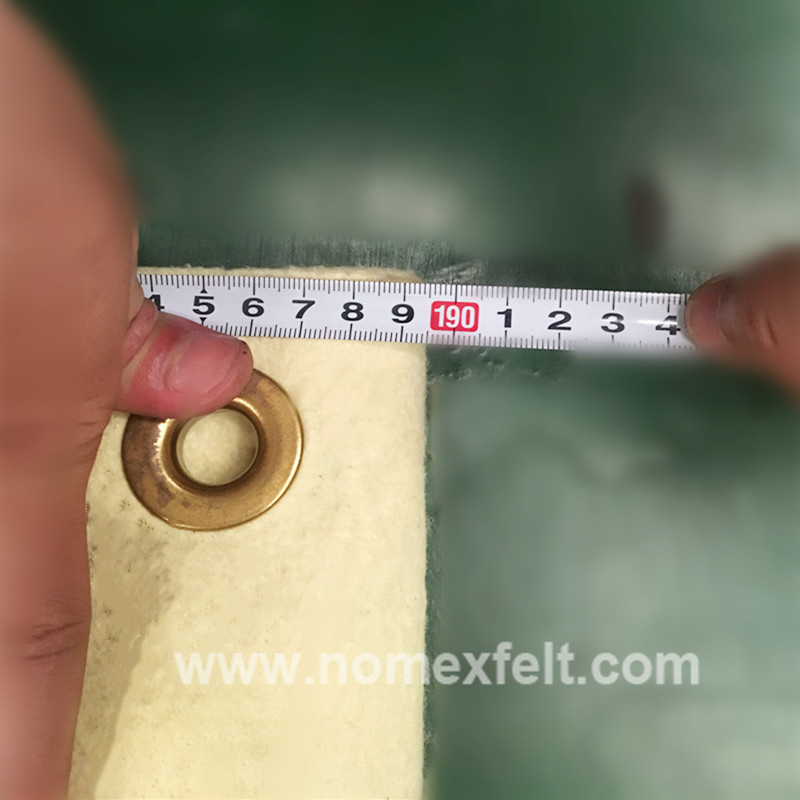

Metal grommets
Metal grommets or eyelets are set into both ends.
They fix the belt to the line.
Send the grommet spacing your line uses and we set them to it.
05
Sizing
Belts are made to 1200, 1420 or 1500mm diameter, or to your size.
Edges come out clean, with no loose fibre.
Send the roller diameter if your line is not one of those three sizes.
06
Needle check
Every finished piece passes through a metal detector.
No broken needle leaves the factory inside the felt.
A broken needle tip left in the felt would mark your rollers or your product.
Quality
ISO 9001 certified felt factory
We work to an ISO 9001 quality system.
QC staff check the raw fibre and every production step.
Certificates are on file and we can send copies with your quote.
If you need a test report with an order, ask for it before production starts.
Packing
How steel sheet belts are packed
Belts are wrapped in bubble film.
They then go into a woven bag for shipping.
Tell us if your forwarder needs different packing and we will pack to that.
Support
Help before and after you order
01
Made to your line
Send the drawing, the belt diameter or pad size and the thickness. We make it to match.
02
The right felt for the heat
Kevlar, PBO or polyester: we match the fibre to the temperature of your sheet.
03
One supplier for felt parts
Belts, pads and strips for the same line come from one factory.
FAQ
Steel sheet felt belt FAQ
What do you need to quote?
The belt diameter, width and thickness, and the sheet temperature.
A photo of the line helps. Add your delivery address for shipping.
Kevlar or PBO?
Kevlar for sheet up to 480°C, with peaks to 500°C.
PBO for hotter sheet, up to 650°C.
Can you fit the grommets?
Yes. Metal grommets or eyelets go in at both ends.
How does ordering work?
We send a quote and an invoice. Production starts when payment arrives.
The balance is paid before shipment.
Which payment methods do you accept?
T/T, PayPal, Western Union and L/C.
Ask us if you need another method.
PD FELT · Foshan, China
Need a custom Para-aramid Endless Belt For Steel Galvanized Sheet Manufacturing?
Tell us the machine, the position on the line and the temperature. We make the felt to your drawing.
