260°C
Aramid Blend · Felt Blankets · Nomex · Polyester
Heat Press Printing Felt Blanket
Rated to 160–260°C
Needled felt pads for flatbed heat presses, in Nomex, polyester or a 50/50 blend.
Nomex up to 260°C, blend up to 200°C, polyester below 160°C.
Heat press felt
Heat press printing felt for flatbed presses
Under a flatbed heat press, the felt spreads the pressure evenly across the print.
This felt is needle punched from Nomex, polyester or a blend of the two.
It goes under flatbed heat presses for transfer printing, hot stamping and laminating.
260°C
Nomex, maximum
200°C
Nomex/polyester blend, maximum
160°C
Polyester, maximum
2–15mm
Thickness
Specifications
Heat press printing felt specifications
Pads come in standard sizes, or on the roll.
Most pads are 10mm or 14–15mm thick.
| Model number | Felt-HPP |
|---|---|
| Type | Felt pad / blanket |
| Material | 100% Nomex (200–260°C), 50% Nomex + 50% polyester (160–200°C), 100% polyester (below 160°C) |
| Colour | Off-white / white |
| Density | Made to order (15mm ≈ 3,600 g/m²) |
| Thickness | 2–15mm (usually 10mm or 14–15mm) |
| Standard sizes | 500×500×10mm, 400×600×10mm, 380×380×10mm, 1100×1700×10mm |
| Roll | 3mm × 2m × 30m per roll |
| Application | Flatbed heat presses: heat transfer, hot stamping and laminating |
| Technique | Needle punched |
| Size | Made to order |
| Packing | Clear film and carton |
| Brand | PD |
| Origin | Guangdong, China |

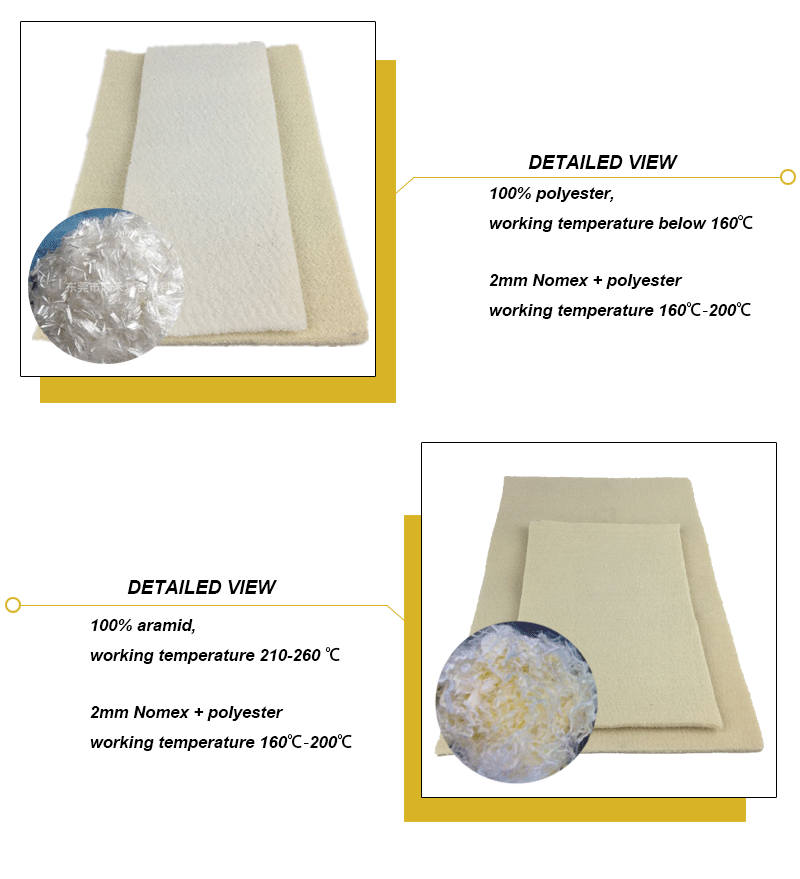

Three grades
Pick the heat press felt by temperature
01

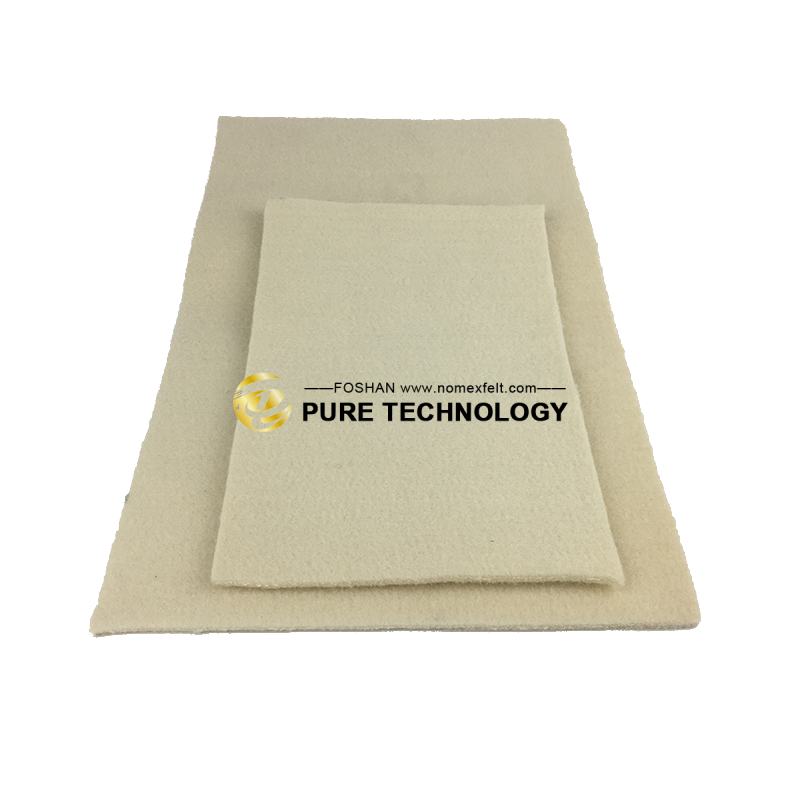

Nomex
For presses running at 200–260°C.
02
Nomex/polyester blend
A 50/50 blend for presses at 160–200°C.
03

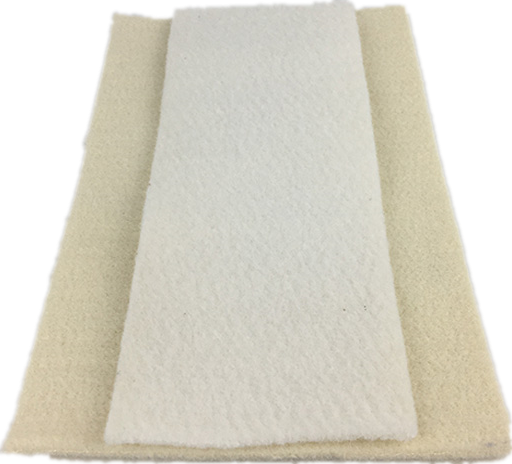

Polyester
The lowest-cost pad, for presses below 160°C.
Application
Where heat press printing felt is used

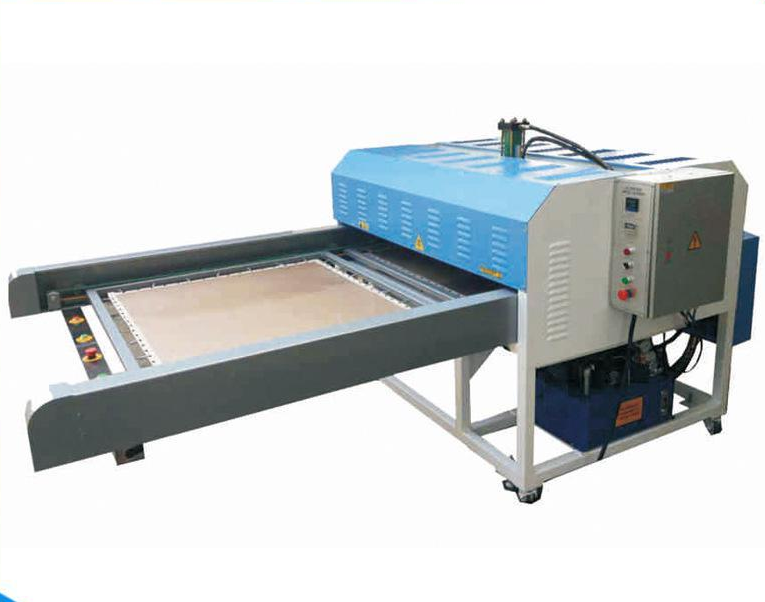

The felt sits under the platen of flatbed sublimation and heat transfer presses.

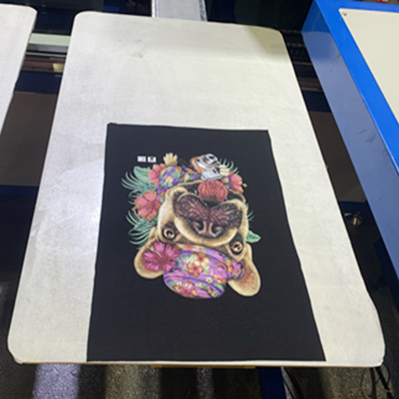

It is used for flags, banners, sportswear panels, T-shirts, floor mats, carpets and mouse pads.
It also works under hot stamping and laminating presses.
Our factory
How we make heat press printing felt
01
Nomex and polyester fibre
We use 100% Nomex, 100% polyester, or a 50/50 blend.
The mix sets how much heat the pad can take.
Send the platen temperature and we will set the mix for it.
02
Carding
Carding opens the fibre and combs out impurities and short lint.
We control temperature and humidity so the web stays even.
An even web is what keeps the finished felt the same thickness from edge to edge.
03
Web laying and needling
The web is cross-laid to the weight you need.
Needle punching builds it from 2mm up to 15mm thick.
A thicker pad cushions more, which helps on uneven or seamed work.
04
Surface finish
The face is kept smooth and even.
That is the side the transfer paper and fabric press against.
A smooth face keeps the press even, with no texture marked into the fabric.
05
Cutting
Pads are cut to standard sizes or to your platen.
Rolls are 3mm × 2m × 30m.
Send the platen size and we cut the pads to it.
06
Needle check
Every finished piece passes through a metal detector.
No broken needle leaves the factory inside the felt.
A broken needle tip left in the felt would mark your rollers or your product.
Quality
ISO 9001 certified felt factory
We work to an ISO 9001 quality system.
QC staff check the raw fibre and every production step.
Certificates are on file and we can send copies with your quote.
If you need a test report with an order, ask for it before production starts.
Packing
How heat press felt is packed
Pads are wrapped in clear film.
They then go into cartons for shipping.
Tell us if your forwarder needs different packing and we will pack to that.
Support
Help before and after you order
01
Made to your machine
Send the machine make, roller size and working width. We make the blanket to match.
02
Matched to the heat
We pick Nomex, polyester or a blend to suit your working temperature.
03
Help with fitting
Ask us how to measure and fit a new blanket before you order.
FAQ
Heat press printing felt FAQ
What do you need to quote?
The pad size and thickness, and your press temperature.
Add your delivery address for shipping.
Which grade should I choose?
Nomex for 200–260°C, the 50/50 blend for 160–200°C, and polyester below 160°C.
Do you sell it by the roll?
Yes. Rolls are 3mm thick, 2m wide and 30m long.
How does ordering work?
We send a quote and an invoice. Production starts when payment arrives.
The balance is paid before shipment.
Which payment methods do you accept?
T/T, PayPal, Western Union and L/C.
Ask us if you need another method.
