Protective Clothing
Heat Resistant Face Shield
Rated to 1000°C

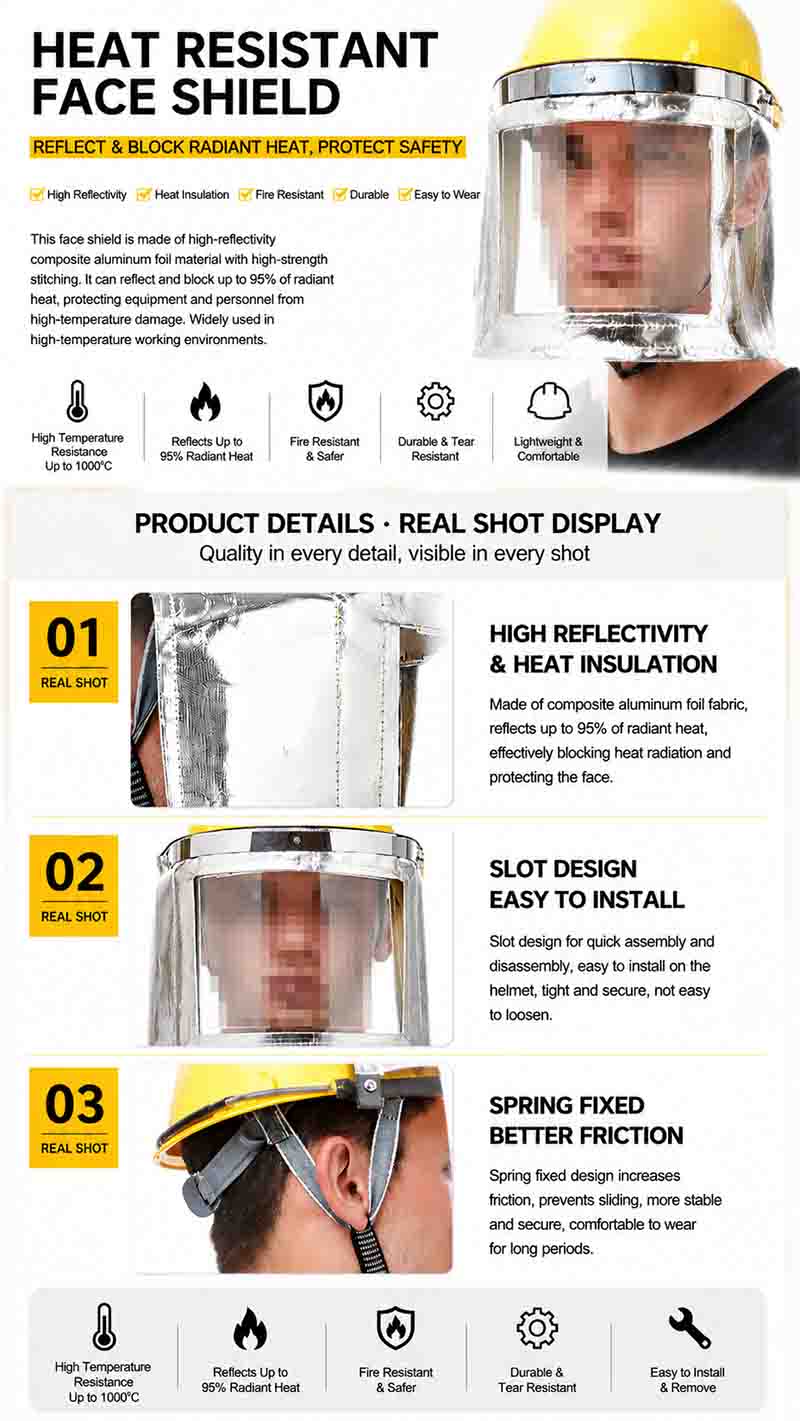

Heat resistant face shield for up to 1000°C radiant heat. High-temperature acrylic screen on an aluminium alloy bracket, with aluminized fireproof cloth. Model PT03001, one size.
Aluminized face shield
Heat resistant face shield for 1000°C radiant heat
A helmet-mounted shield that protects the face and neck at the furnace.
A clear high-temperature screen lets you see the work.
Aluminized fireproof cloth around it keeps radiant heat off the head and neck.

1000°C
Radiant heat protection
PT03001
Model number
1 size
Fits all
Alloy
Aluminium bracket
Specifications
Heat resistant face shield specifications
One size fits all wearers.
| Model number | PT03001 |
|---|---|
| Radiant heat | Up to 1000°C |
| Bracket | Aluminium alloy |
| Screen | High-temperature acrylic |
| Hood fabric | Composite aluminium foil fireproof cloth |
| Lining | Flame-retardant cotton |
| Size | One size |
| Protection | Radiant heat, molten metal splash, flame |
| Brand | PD |
| Origin | Guangdong, China |

Why this shield
What the face shield does for you
01
Clear view
The high-temperature screen stays clear, so you can watch the melt or the part you handle.
02
Heat stays out
Aluminized fireproof cloth reflects radiant heat off the head and neck.
03
Solid mount
The aluminium alloy bracket holds the screen steady on the helmet.
Test data
Tested fabric values
The shield uses the same aluminized cloth and lining as our heat protective clothing.
| Test | Aluminized outer shell | Flame-retardant lining |
|---|---|---|
| Flame retardance | Damaged length ≤100mm, afterflame ≤2s, no melting or dripping | Damaged length ≤100mm, afterflame ≤2s, no melting or dripping |
| Thermal stability | 260°C, dimensional change ≤10% warp and weft | 180°C, dimensional change ≤10% warp and weft |
| Breaking strength | ≥650N warp and weft | ≥500N warp and weft |
| Tear strength | ≥100N warp and weft | ≥500N warp and weft |
| Peel strength | ≥9N warp and weft | ≥9N warp and weft |
| Hydrostatic pressure | ≥17kPa | ≥17kPa |
Test items follow XF 634-2015, the Chinese standard for firefighter heat-insulating clothing.
Maintenance
Check it after every use
Look over the screen, bracket and fabric after each shift.
Retire a shield that cannot be repaired.
A repaired shield must be inspected and labelled before it goes back into use.
Wipe it clean with a neutral detergent.


Application
Where the face shield is worn
Casting and foundry work, boiler smelting and glass processing.
Baking ovens and any job that puts your face close to radiant heat.
Wear it with the aluminized suit and hood so the whole head is covered.
FAQ
Heat resistant face shield questions
What is the screen made of?
High-temperature acrylic, held in an aluminium alloy bracket.
Does it fit every head size?
Yes. It is one size and mounts on a safety helmet.
Is it for walking into flame?
No. It protects against radiant heat and splash near the heat source.
Fire entry needs a different build.
Which standard are the fabrics tested to?
The test items follow XF 634-2015 for firefighter heat-insulating clothing.
Can a damaged shield be repaired?
Small repairs are fine if the shield is inspected and labelled afterwards.
Replace it if the screen or bracket cannot be fixed.
