260°C
Felt Blankets · Nomex
Heat Transfer Printing Felt Blanket
Rated to 200–260°C
An endless 100% Nomex felt blanket for rotary heat transfer and sublimation printing machines.
Works at 200–260°C. Made to your width and circumference.
Heat transfer printing felt
Nomex felt blankets for rotary heat transfer printing
The blanket presses paper and fabric against the hot drum, so any flaw shows in the print.

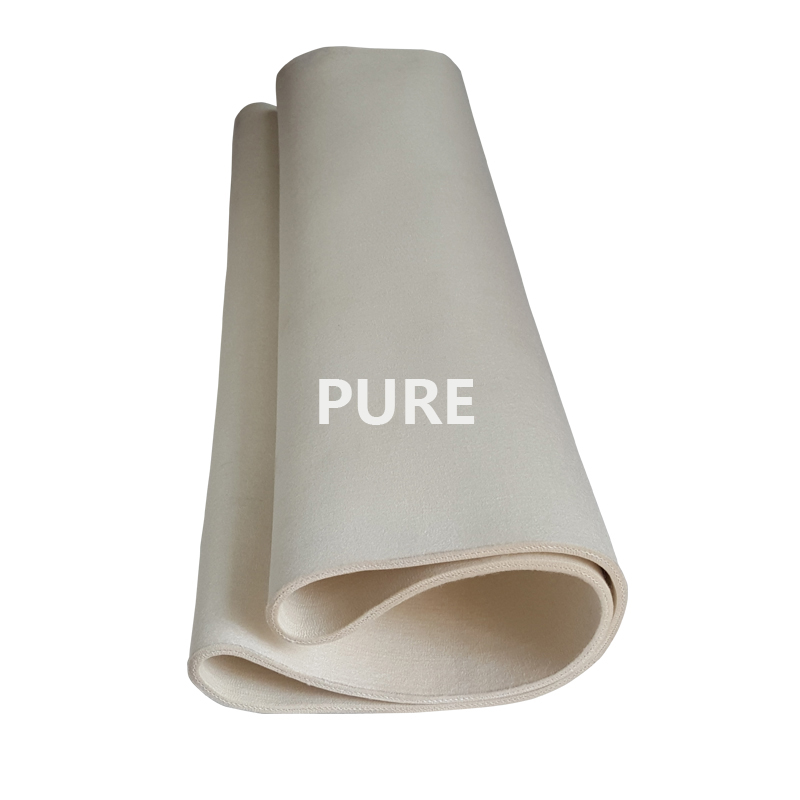

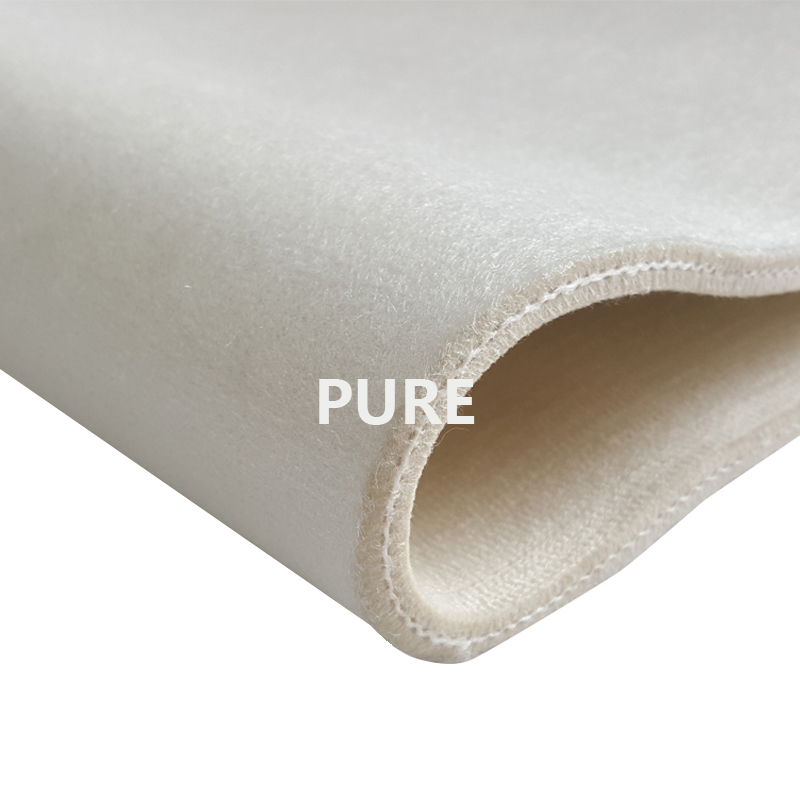

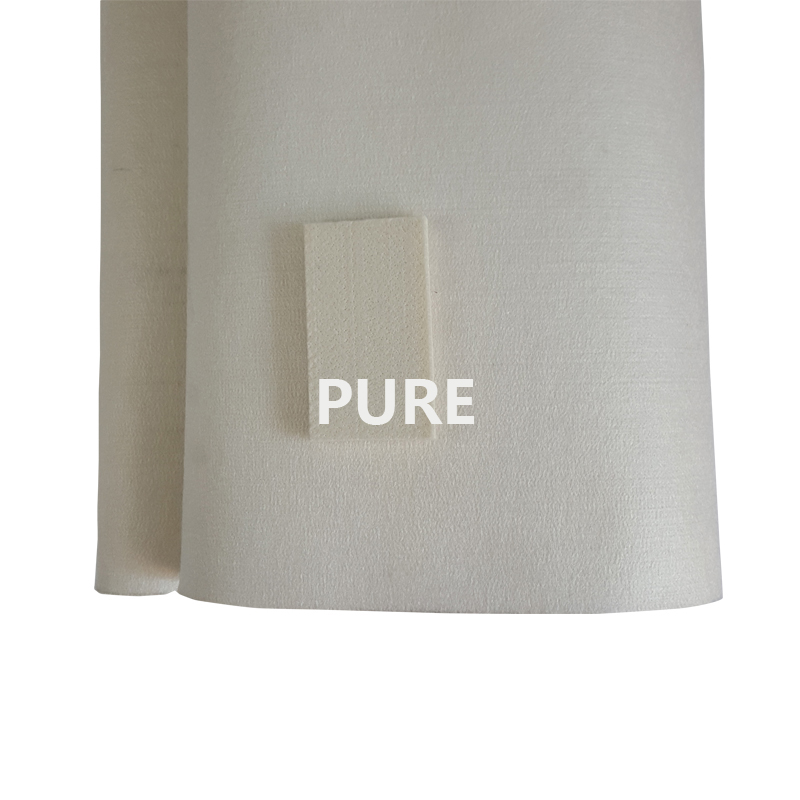

This endless blanket is needle punched from 100% Nomex meta-aramid.
It runs on rotary heat transfer and sublimation printing machines.
200–260°C
Working temperature range
260°C
Maximum temperature
3500mm
Widest blanket
50m
Longest blanket
Specifications
Heat transfer printing felt specifications
Every blanket is made to your machine.
8mm is the most common thickness.
| Type | Endless felt blanket |
|---|---|
| Material | 100% Nomex (meta-aramid) |
| Colour | Off-white |
| Temperature | 200–260°C, max 260°C |
| Density | 400 g/m²·mm (6mm ≈ 2,300 g/m²; 7mm ≈ 2,630 g/m²; 8mm ≈ 3,100 g/m²) |
| Thickness | 6–10mm (8mm most common) |
| Width | 600–3500mm |
| Length | Up to 50m; minimum circumference 510mm |
| Shrinkage | Width 2%, length 3% (made 20mm wider to allow for it) |
| Surface | Plain and smooth, low shrinkage, no lint |
| Application | Rotary heat transfer and sublimation printing machines |
| Technique | Needle punched |
| Size | Made to order |
| Packing | Carton and woven bag |
| Brand | PD |
| Origin | Guangdong, China |
Why Nomex
Why choose a Nomex heat transfer printing felt
01
Smooth, lint-free face

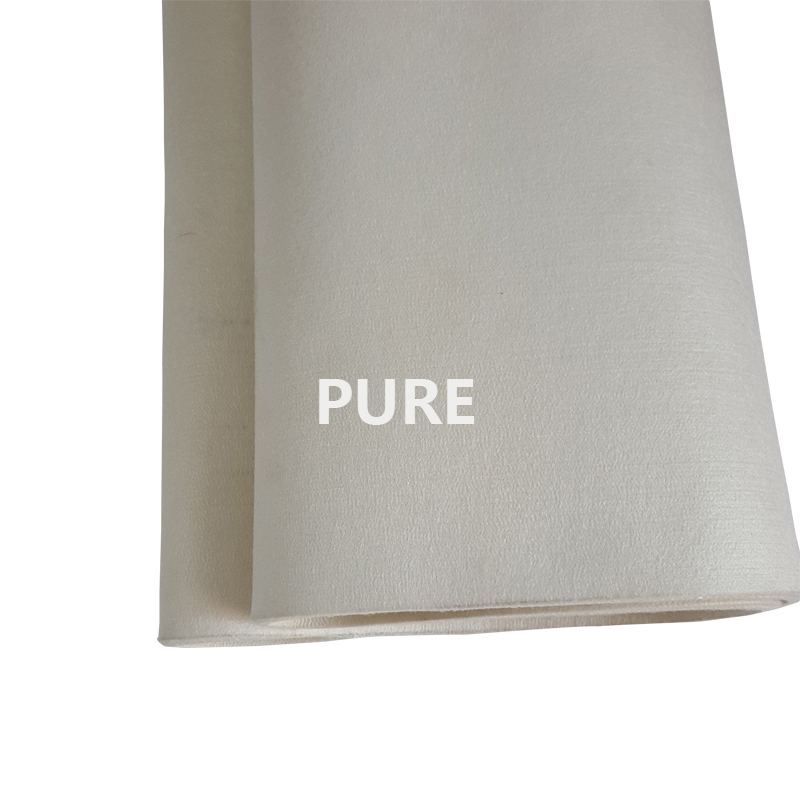

A plain, smooth surface with no lint keeps the print sharp.
02
Low shrinkage
It shrinks about 2% in width and 3% in length, and we allow for that when we make it.
03
Runs straight
The blanket resists running to one side, so it is easy to set up.
Application
Where heat transfer printing felt runs

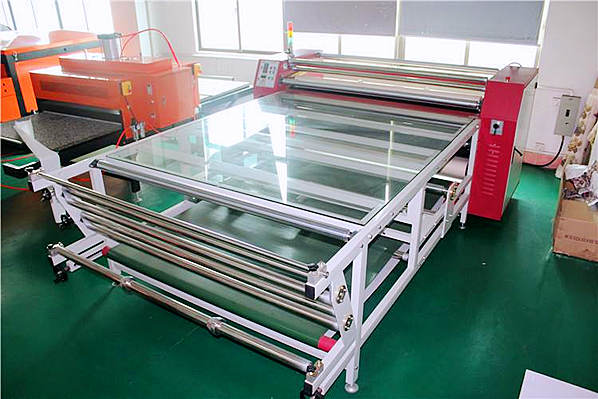

The blanket runs round the drum of rotary heat transfer and sublimation printing machines.
It prints fabric, curtains and furnishing fabric, leather, webbing, clothing and advertising textiles.
Our factory
How we make heat transfer printing felt
01

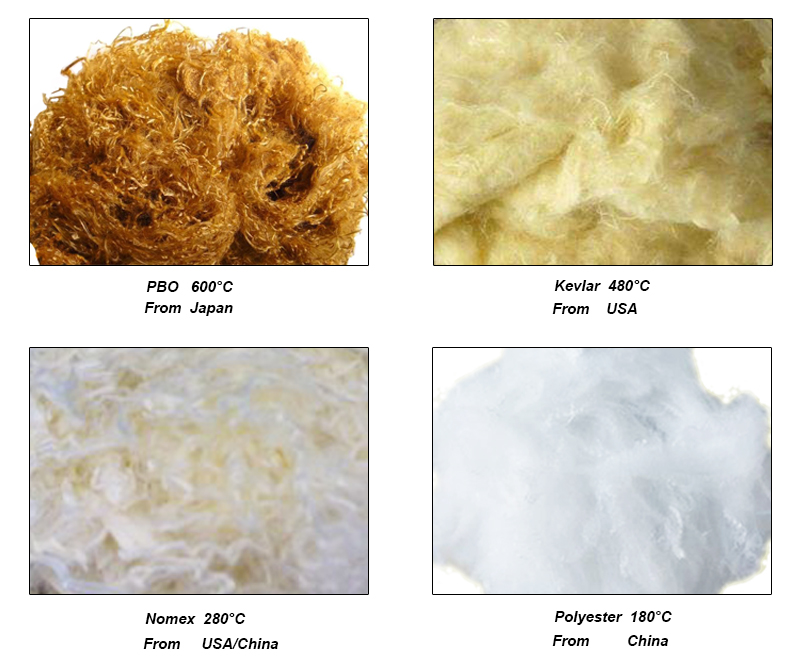

Nomex fibre
We use 100% Nomex meta-aramid fibre.
It holds its strength at high heat and does not melt or drip.
The flame resistance is in the fibre itself, so it does not wash out or wear off.
02
Carding
Carding opens the fibre and combs out impurities and short lint.
We control temperature and humidity so the web stays even.
An even web is what keeps the finished felt the same thickness from edge to edge.
03
Web laying and needling
The web is cross-laid to about 400 g/m² per mm of thickness.
Needle punching then builds it into an endless blanket.
The weight per mm is what sets how much the blanket cushions the work.
04
Shrink allowance
In use the blanket shrinks about 2% in width and 3% in length.
So we make each blanket 20mm wider than the finished size.
Without that allowance the blanket would come up short after the first runs.
05
Sizing
Each blanket is made to your width and length or circumference.

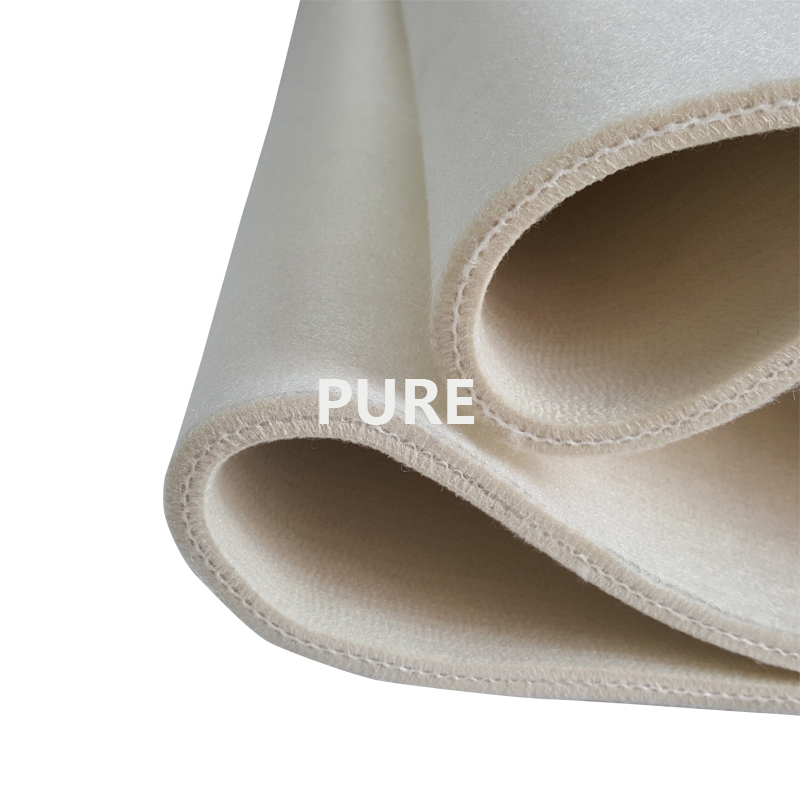

Edges come out clean, with no loose fibre.

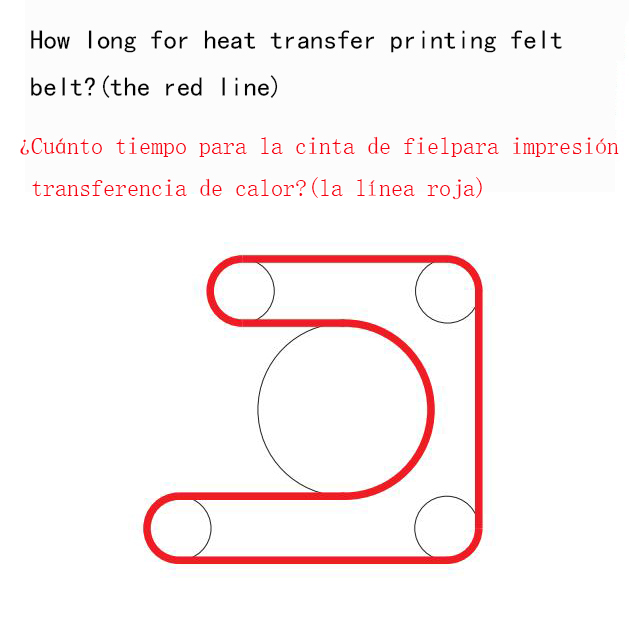

Send the machine model if you are not sure of the circumference and we will check it.
06
Needle check
Every finished piece passes through a metal detector.
No broken needle leaves the factory inside the felt.
A broken needle tip left in the felt would mark your rollers or your product.
Quality
ISO 9001 certified felt factory
We work to an ISO 9001 quality system.
QC staff check the raw fibre and every production step.
Certificates are on file and we can send copies with your quote.
If you need a test report with an order, ask for it before production starts.
Packing
How printing felt is packed
Blankets are rolled and wrapped for shipping.
They then go into a carton or woven bag.
Tell us if your forwarder needs different packing and we will pack to that.
Support
Help before and after you order
01
Made to your machine
Send the machine make, roller size and working width. We make the blanket to match.
02
Matched to the heat
We pick Nomex, polyester or a blend to suit your working temperature.
03
Help with fitting
Ask us how to measure and fit a new blanket before you order.
FAQ
Heat transfer printing felt FAQ
What do you need to quote?
The machine make, the blanket width and its length or circumference.
The thickness of your old blanket helps. Add your delivery address for shipping.
Which thickness should I choose?
8mm is the most common.
We make 6mm to 10mm. Match what your machine runs now.
Why is the new blanket wider than I asked?
It shrinks about 2% in width in use.
The extra 20mm brings it to the right width once it settles.
How does ordering work?
We send a quote and an invoice. Production starts when payment arrives.
The balance is paid before shipment.
Which payment methods do you accept?
T/T, PayPal, Western Union and L/C.
Ask us if you need another method.
PD FELT · Foshan, China
Need a custom Heat Transfer Printing Felt Blanket?
Tell us the machine, the position on the line and the temperature. We make the felt to your drawing.
