Endless Felt Belts · Nomex
100% Nomex Ironer Belt
Rated to 240°C
A needle-punched 100% Nomex ironer belt for flatwork ironers heated by thermal oil.
240°C at 4mm, in widths from 75mm to 330mm. Woven version to 280°C.
Nomex ironer belt
Nomex ironer belts for oil-heated flatwork ironers
Ironers heated by thermal oil run too hot for polyester belts.
This belt is needle punched from 100% Nomex meta-aramid.
It carries linen through oil-heated flatwork ironers, and runs on feeders and stackers too.
240°C
Working temperature, 4mm belt
280°C
Woven Nomex, maximum
100–330mm
Standard widths
30m
Per roll, other lengths to order
Specifications
Nomex ironer belt specifications

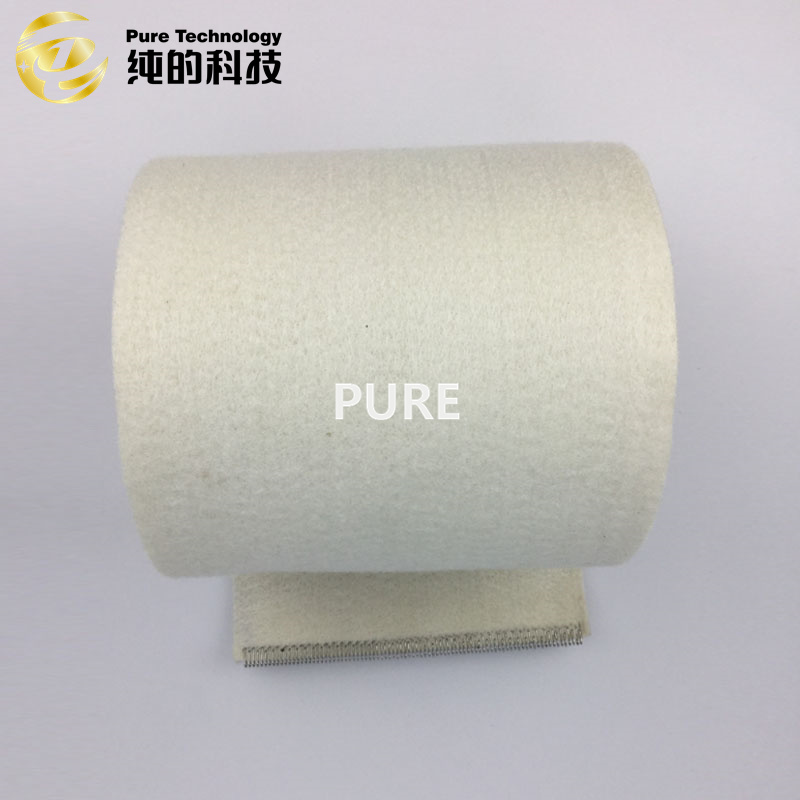

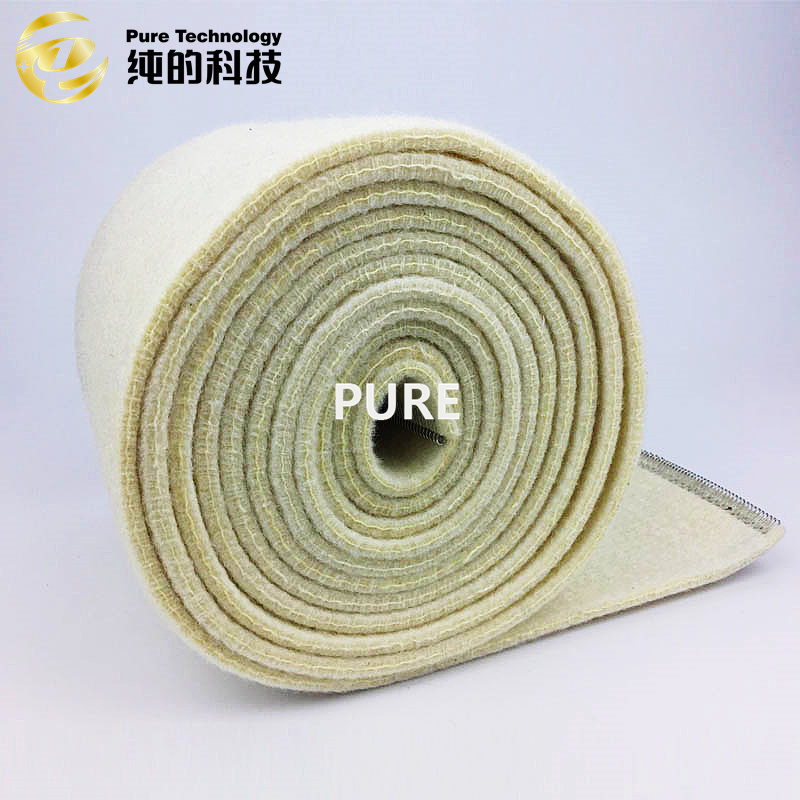

Belts come by the roll or cut to length.
Wire hook fasteners can be fitted.
| Model number | Ironer-N1 |
|---|---|
| Type | Needle-punched or woven ironer belt |
| Material | 100% Nomex (meta-aramid) |
| Colour | Off-white |
| Temperature | Needled 4mm: 240°C. Needled 2mm: up to 210°C. Woven: 240–280°C |
| Density | 500 g/m² (2mm), 600 g/m² (Chicago), 1200 g/m² (4mm) |
| Thickness | 2mm or 4mm needled; 5–5.5mm for the Nomex/polyester blend |
| Width | 75mm, 100mm, 150mm, 200mm, 300mm, 330mm, or any width to order |
| Length | 30m per roll (needled), 100m per roll (woven and Chicago), or made endless |
| Joint | Wire hook fastener with steel pin |
| Application | Oil-heated flatwork ironers, Chicago band machines and Speed Queen ironers; feeders, stackers and heat transfer machines |
| Technique | Needle punched |
| Size | Made to order |
| Packing | Carton |
| Brand | PD |
| Origin | Guangdong, China |
Models
Nomex ironer belts by weight and machine
The belt is chosen by how your ironer is heated and how hard it runs.
Send the ironer make, the roll width and the working temperature and we will confirm the build.
| Build | Material | Weight | Temperature | Width | Length | Machine |
|---|---|---|---|---|---|---|
| Needled, 4mm | 100% Nomex | 1200 g/m² | 240°C | 100–330mm | 30m roll or endless | Oil-heated flatwork ironers |
| Needled, 2mm | 100% Nomex | 500 g/m² | Up to 210°C | 100–330mm | 30m roll or endless | Lighter duty, lower heat |
| Woven | 100% Nomex | — | 240–280°C | 150mm standard, or to order | 100m roll | The hottest ironers |
| Chicago band belt | 100% Nomex | 600 g/m² | Around 200°C | 75mm, 150mm, 200mm | 100m roll | Chicago band machines, Speed Queen |
| Needled blend, 5–5.5mm | 50% Nomex / 50% polyester | 1500 g/m² | Below 220°C | To order | 30m roll or endless | Gas or electric heated ironers |
Every build is cut to your width and made endless, or supplied by the roll with fasteners.
Why Nomex
Why choose a Nomex ironer belt
01
Built for oil heating
The 4mm needled belt runs at 240°C, and the woven version takes 240–280°C, the range oil-heated ironers work in.
02
Holds its size
The needled felt keeps its width and length, so the belts track straight.
03
Fastener ready
Belts can come with wire hook fasteners and a steel pin already fitted.
Application
Where Nomex ironer belts run

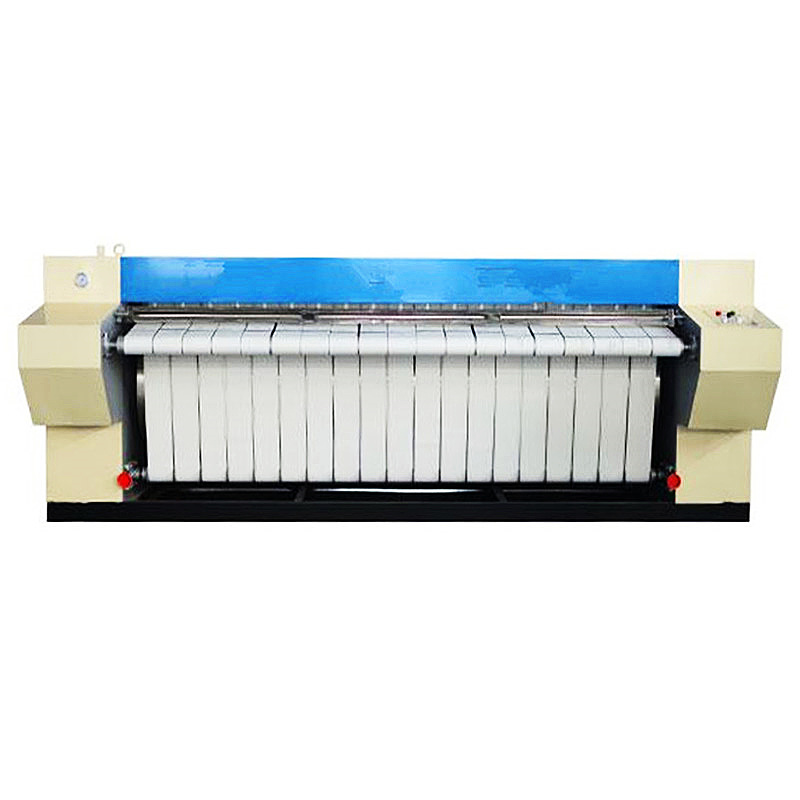

Nomex belts carry linen round the rolls of oil-heated flatwork ironers.
They also run on feeders, stackers and heat transfer machines.
On steam-heated ironers, polyester belts cost less.
Our factory
How we make Nomex ironer belts
01
Raw fibre
We use 100% Nomex meta-aramid fibre.
It holds its strength at ironer temperatures and does not melt or drip.
The flame resistance is in the fibre itself, so it does not wash out or wear off.
02
Fibre opening and carding
Bales are opened and the fibre is combed into a thin, even web.
We control temperature and humidity so the web stays even.
An even web is what keeps the belt the same thickness from edge to edge.
03
Web laying and cross lapping
The web is cross-laid layer on layer to the weight you need: 500 g/m² for a 2mm belt, 1200 g/m² for a 4mm belt.
Cross lapping puts fibre in both directions, so the belt holds across the width as well as along it.
The heavier weights suit ironers that run hot and fast.
04
Base fabric
A woven scrim goes into the middle of the web before needling.
Polyester scrim is standard. A Nomex scrim is available where the ironer runs hotter.
The scrim is what stops the belt stretching as it runs round the rolls.
05
Needle punching
Barbed needles punch the web and the scrim together into one felt.
There is no glue in the belt: the fibres hold each other.
Needling density sets how firm and dense the finished belt is.
06
Heat setting
The belt is heat set at high temperature, which is also called thermostabilising.
That takes the shrinkage out, so the width and length stay stable on the machine.
A belt that skipped this step would pull in as soon as the ironer got hot.
07
Special finishing
Some models get an antistatic treatment or a surface finish.
The finish goes with the model, so tell us the ironer make and what you run.
Ask for it if your linen picks up static on the line.
08
Cutting and slitting
Belts are slit to 100, 150 or 200mm wide, or to your width.
Rolls are 30m long, or cut to length.
If your ironer needs another width, tell us and we cut to it.
09
Belt joining

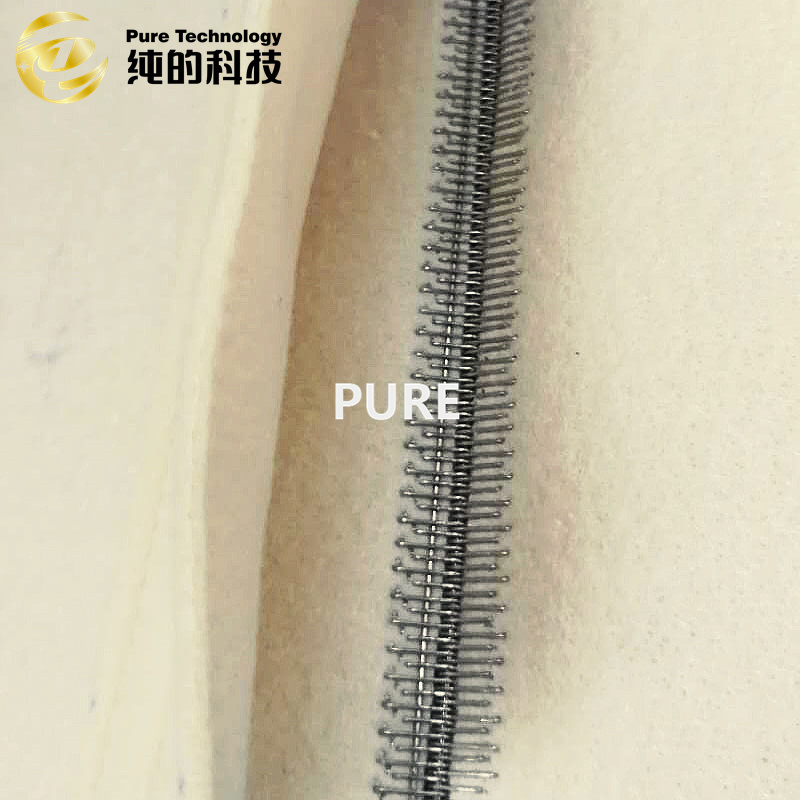

Belt ends are fitted with stainless steel hooks and joined with a pin.
Nomex belts take a steel pin.
Hooks let you join the belt on the machine, with no sewing.
10
Needle check
Every finished piece passes through a metal detector.
No broken needle leaves the factory inside the felt.
A broken needle tip left in the belt would mark your rolls or the linen.
Quality
ISO 9001 certified felt factory
We work to an ISO 9001 quality system.
QC staff check the raw fibre and every production step.
Certificates are on file and we can send copies with your quote.
If you need a test report with an order, ask for it before production starts.
Packing
How Nomex ironer belts are packed
Belts are rolled and packed in cartons.
Tell us if you want them cut to length before shipping.
Tell us if your forwarder needs different packing and we will pack to that.
Support
Help before and after you order
01
Made to your ironer
Send the ironer make, roll size and working width. We make the belt or padding to match.
02
Matched to the heating
Steam or thermal oil: we match the fibre to how your ironer is heated.
03
The full ironer set
Belts, padding and guide tape come from one supplier, sized for the same machine.
FAQ
Nomex ironer belt FAQ
What do you need to quote?
The belt width, the length and how the ironer is heated.
The ironer make and model help. Add your delivery address for shipping.
Nomex or polyester ironer belt?
Nomex for ironers heated by thermal oil.
Polyester, rated to 170°C, for steam-heated ironers.
Can you fit the fasteners?
Yes. We fit wire hook fasteners with a steel pin.
Or order plain belts and join them on site.
Which weight should I order?
1200 g/m² at 4mm is the standard belt for oil-heated ironers at 240°C.
500 g/m² at 2mm is lighter and cheaper, for ironers up to 210°C. For the hottest machines, take the woven belt.
How does ordering work?
We send a quote and an invoice. Production starts when payment arrives.
The balance is paid before shipment.
Which payment methods do you accept?
T/T, PayPal, Western Union and L/C.
Ask us if you need another method.
