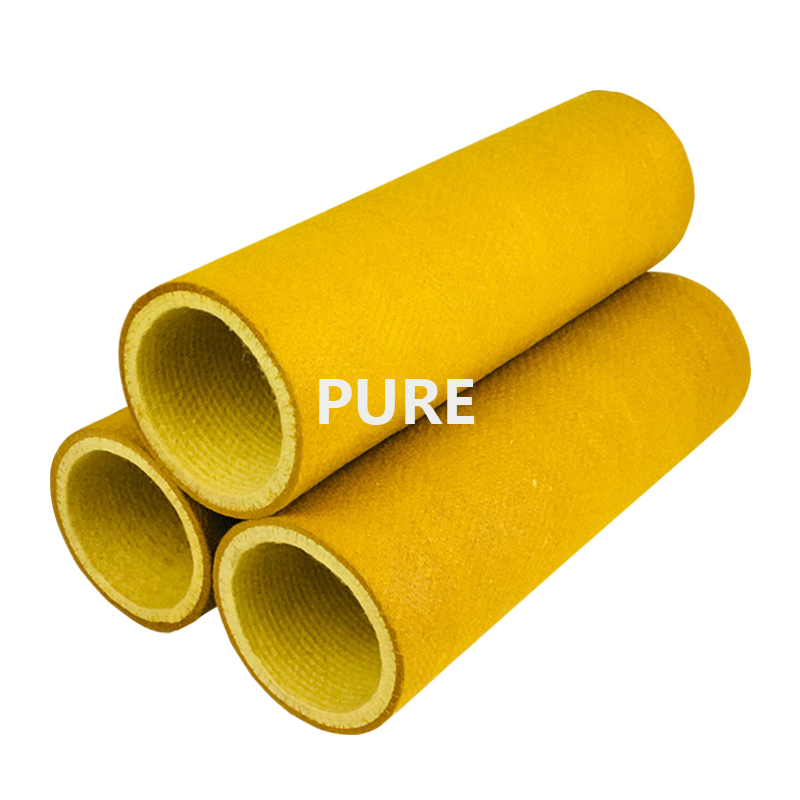

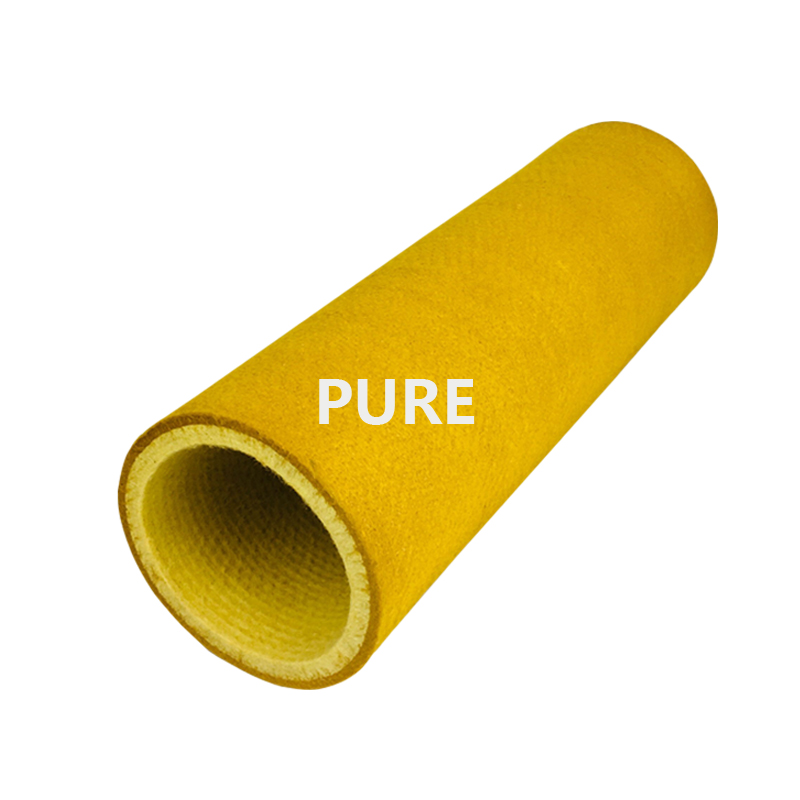

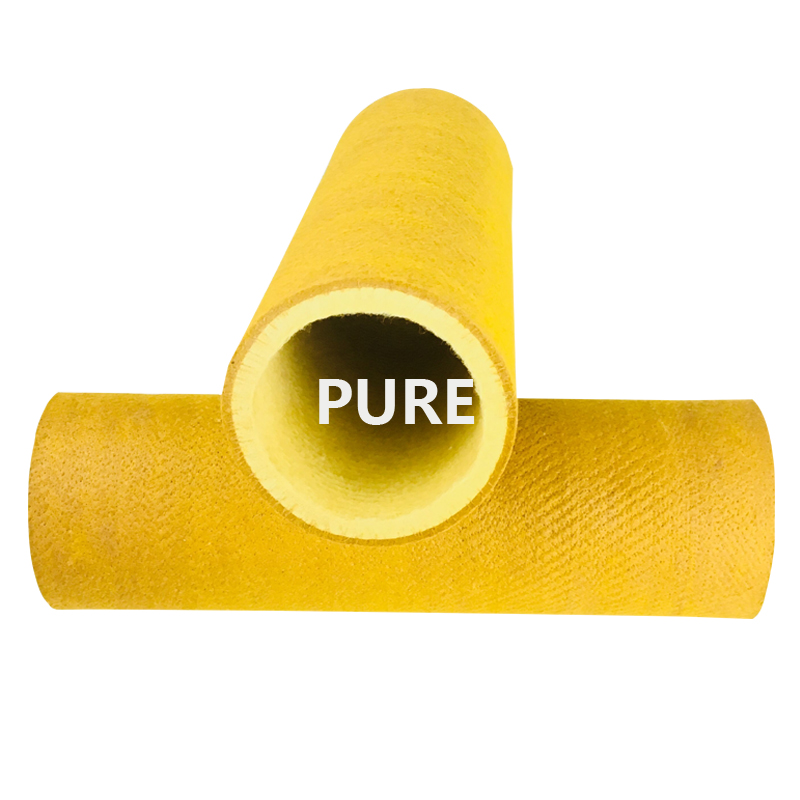

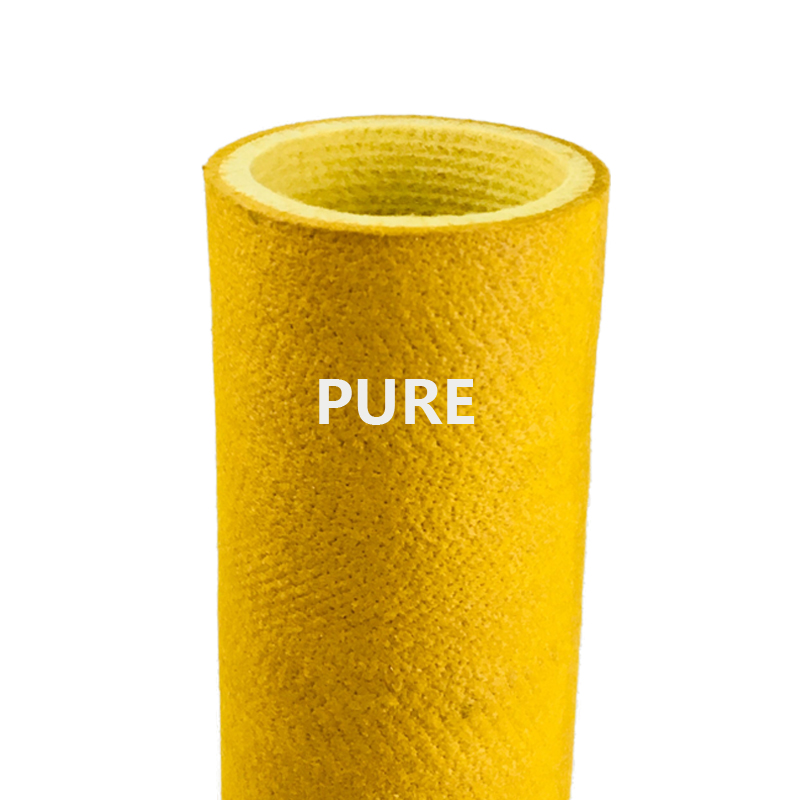

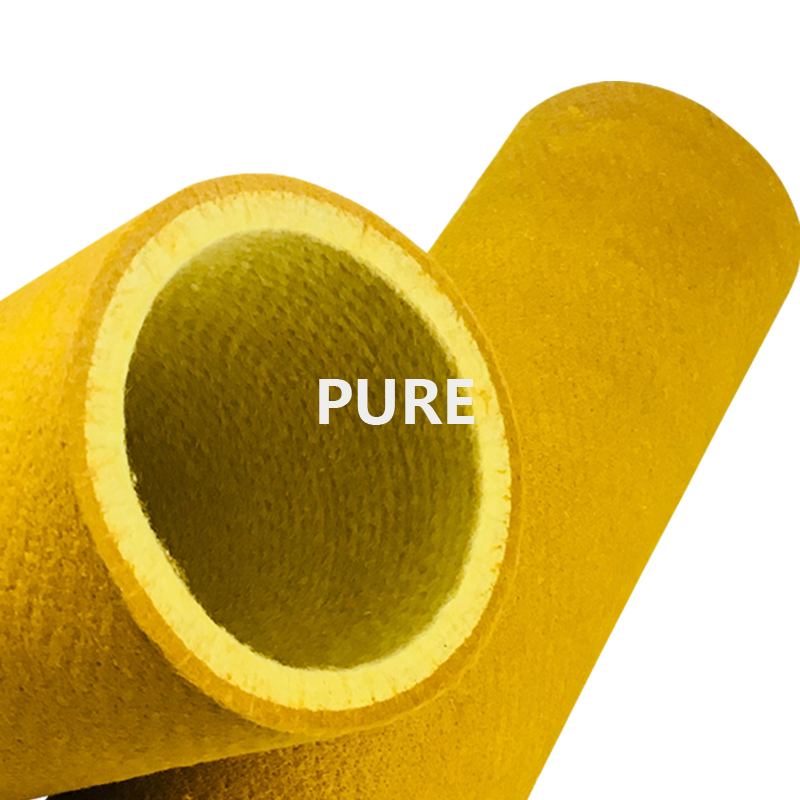

3+7 PBO/Kevlar Felt Roller Sleeve
3+7 PBO/Kevlar Felt Roller Sleeve
3+7 PBO/Kevlar Felt Roller Sleeve
3+7 PBO/Kevlar Felt Roller Sleeve

Felt Rollers · Kevlar · PBO

3+7 PBO/Kevlar Felt Roller Sleeve

Rated to 600–650°C

Reference price: US$308–585 per m², EXW

A seamless PBO/Kevlar felt roller sleeve for the press exit and the rollers after the hot saw.

Up to 600°C, or 650°C with premium PBO. Made to your roller size.

PBO felt roller

PBO felt roller sleeves for the press exit and hot saw

The rollers nearest the press see the most heat, and leave the most marks.

This sleeve has a 3mm PBO face over 7mm of Kevlar, needled into one seamless tube.

It covers the run-out rollers at the press exit and the rollers right after the hot saw.

3+7 PBO/Kevlar felt roller sleeve

600°C

Maximum temperature

650°C

With premium PBO fibre

18–350mm

Inner diameter

R0–R3

Resin hardness grades

Specifications

PBO felt roller sleeve specifications

Every sleeve is made to your roller.

Tell us the inner diameter, length and hardness grade.

Model number Roller-PK
Type Felt roller sleeve
Material 3mm PBO + 7mm Kevlar
Colour Brown / yellow
Temperature 600°C max, 650°C with premium PBO
Density 400 g/m²·mm
Thickness 6–12mm
Inner diameter 18–350mm
Hardness grade R0 (no resin), R1 (soft), R2 (semi-rigid), R3 (rigid)
Position on line Press exit and run-out table (about 8 pieces); after the hot saw (about 5 pieces)
Technique Needle punched
Size Made to order
Packing Shrink film and carton
Brand PD
Origin Guangdong, China

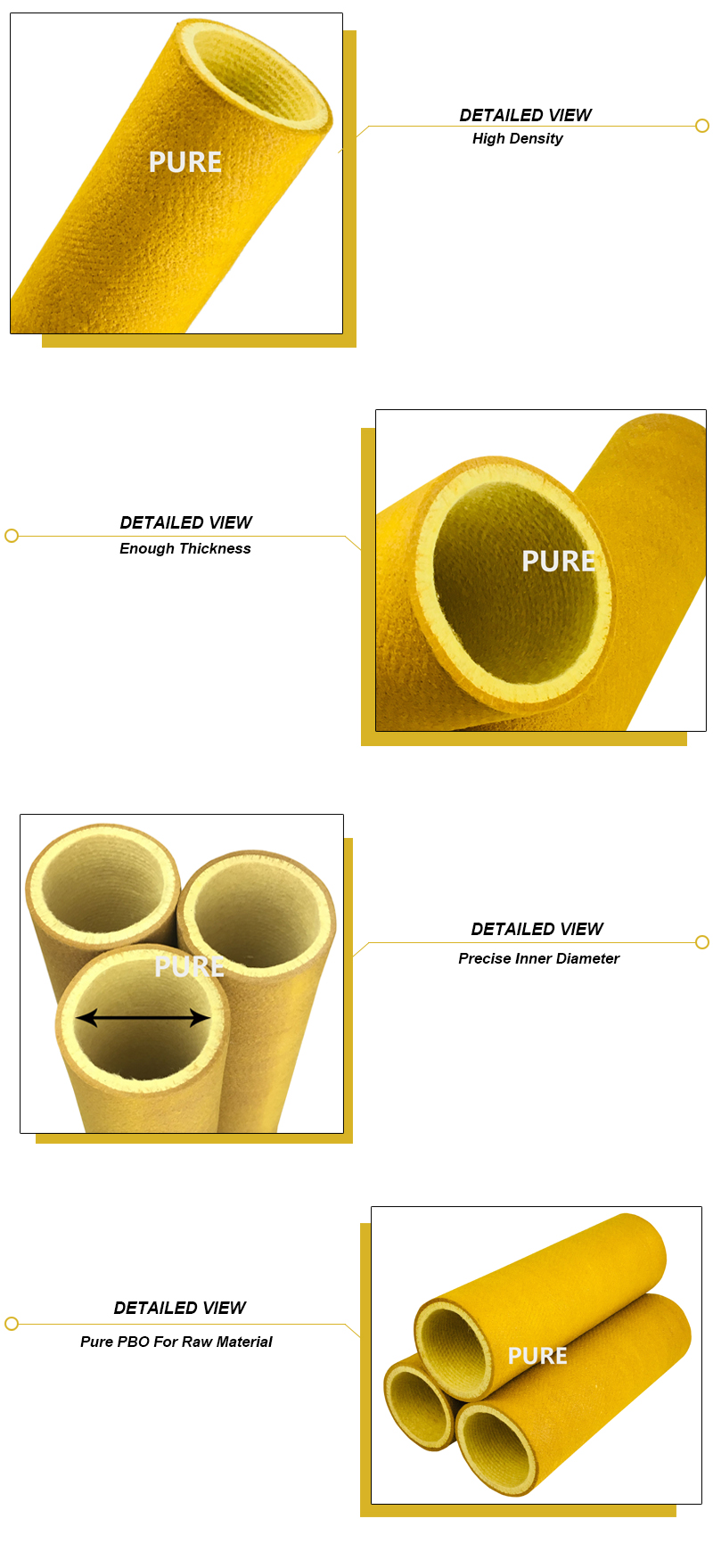

PBO felt roller sleeve layers: PBO face on a Kevlar base

Why PBO

Why choose a PBO felt roller sleeve

01

Takes over from graphite

PBO sleeves replace graphite at the press exit, where graphite leaves scratches on the profile.

02

Rated to 600°C

Standard PBO works up to 600°C, and premium PBO reaches 650°C.

03

Seamless tube

The sleeve is needled as one tube, so there is no joint and the thickness stays even all the way round.

Cooling bed layout with felt belts and rollers on an aluminium extrusion line

Application

Where PBO felt roller sleeves go

About 8 sleeves cover the press exit and the run-out table before the saw.

About 5 more go straight after the hot saw.

After those first positions, Kevlar sleeves take over.

Kevlar sleeves for the next positions ↗

All PBO felt ↗

Our factory

How we make PBO felt roller sleeves

01

PBO and Kevlar fibre

The working face is PBO fibre. The base is 100% Kevlar para-aramid.

PBO is the most heat-resistant fibre we use.

PBO fibre properties ↗

The Kevlar base carries the load, so the PBO face only has to take the heat.

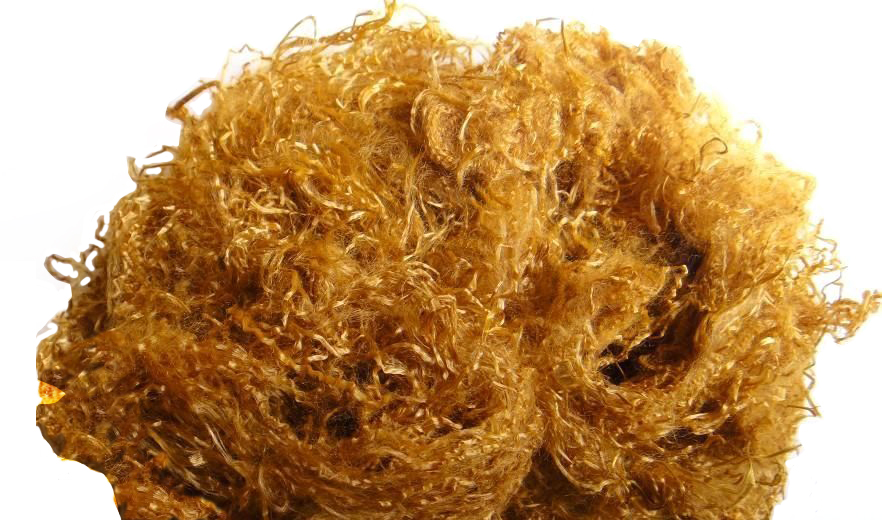

Raw PBO fibre
Carding fibre into an even web

02

Carding

Carding opens the fibre and combs out impurities and short lint.

We control temperature and humidity so the web stays even.

An even web is what keeps the finished felt the same thickness from edge to edge.

03

Web laying and needling

The web is cross-laid in layers to the weight you need.

Needle punching then locks the fibre onto the base cloth.

The barbed needles pull fibre through the layers, so the felt holds together without glue.

Web laying and needle punching machines
Resin treated PBO felt

04

Resin treatment

Resin grades run from R0 (no resin) to R3 (rigid).

Resin adds wear resistance and stops aluminium swarf sticking to the felt.

Tell us how abrasive the position is and we will suggest the grade.

05

Cutting

Each sleeve is cut to your roller length.

Ends come out clean, with no loose fibre.

Send the roller length and we cut to it. There is no standard size.

Cutting PBO felt roller sleeves to size
Checking finished PBO felt roller sleeves

06

Needle check

Every finished piece passes through a metal detector.

No broken needle leaves the factory inside the felt.

A broken needle tip left in the felt would mark your rollers or your product.

Quality

ISO 9001 certified felt factory

We work to an ISO 9001 quality system.

QC staff check the raw fibre and every production step.

Certificates are on file and we can send copies with your quote.

If you need a test report with an order, ask for it before production starts.

ISO 9001 and quality system certificates
Felt packed in cartons for export

Packing

How PBO roller sleeves are packed

Sleeves are wrapped in clear film to keep them dry.

They then go into cartons for shipping.

Tell us if your forwarder needs different packing and we will pack to that.

Support

Help before and after you order

01

Made to your drawing

Send a drawing or the size of your old part. We make the new one to match.

02

The right felt for each position

Not sure which felt goes where? We match PBO, Kevlar, Nomex or polyester to each position on your line.

03

One source for your line

We also supply extrusion presses, ageing furnaces, dies and handling systems.

FAQ

PBO felt roller sleeve FAQ

What do you need to quote?+

The roller diameter, the sleeve length and the hardness grade.

A photo of the run-out table helps. Add your delivery address for shipping.

When is premium PBO worth it?+

Standard PBO covers work up to 600°C.

Choose the premium grade when the sleeve sees up to 650°C.

Which hardness grade should I choose?+

R0 has no resin and is the softest. R3 is rigid.

Tell us the position and the profile type, and we suggest a grade.

Is it normal for a roller sleeve to turn black after a few days?+

No. It usually means the roller is not turning and the sleeve is rubbing.

Check that the roller spins freely.

How does ordering work?+

We send a quote and an invoice. Production starts when payment arrives.

The balance is paid before shipment.

Which payment methods do you accept?+

T/T, PayPal, Western Union and L/C.

Ask us if you need another method.
