Often used in fabric finishing processes, the silicone surface has a longer life and is more durable. It can also be used as a conveyor belt for other mechanical accessories.

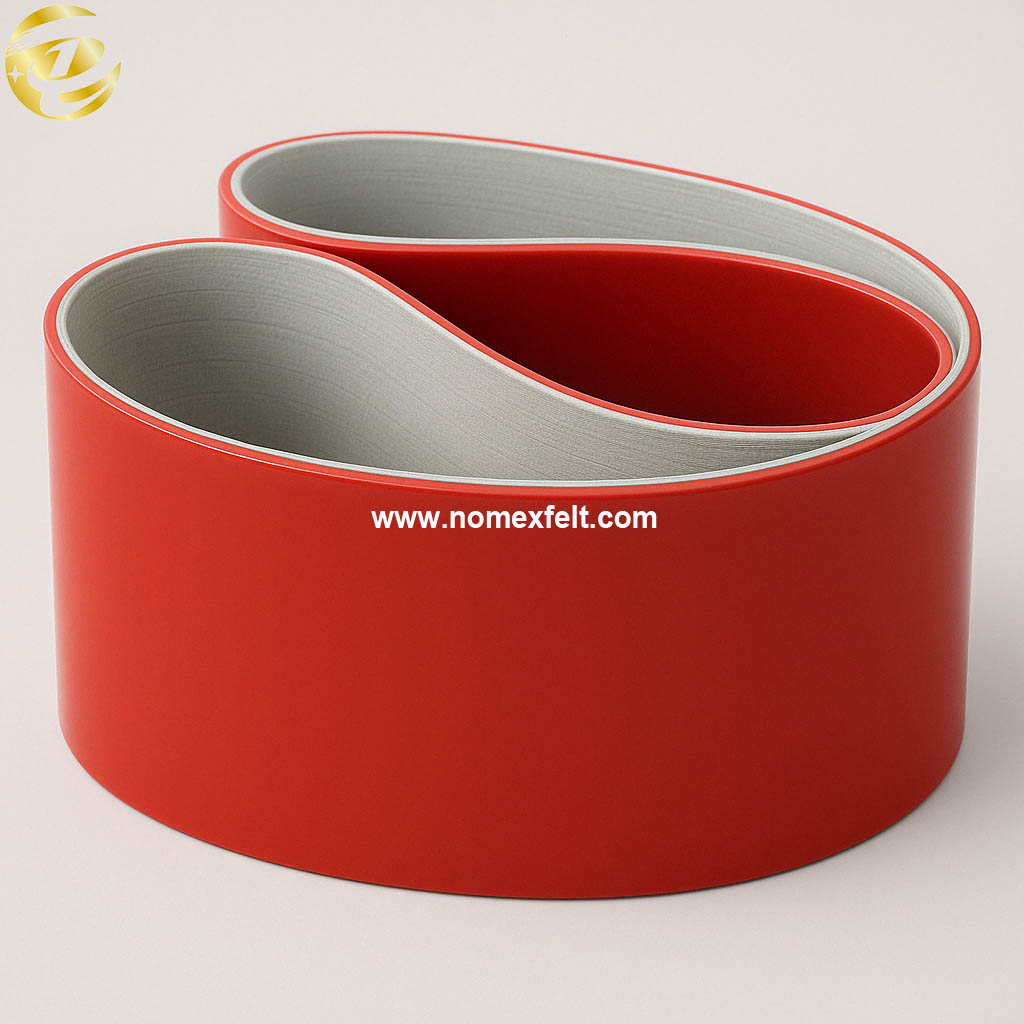

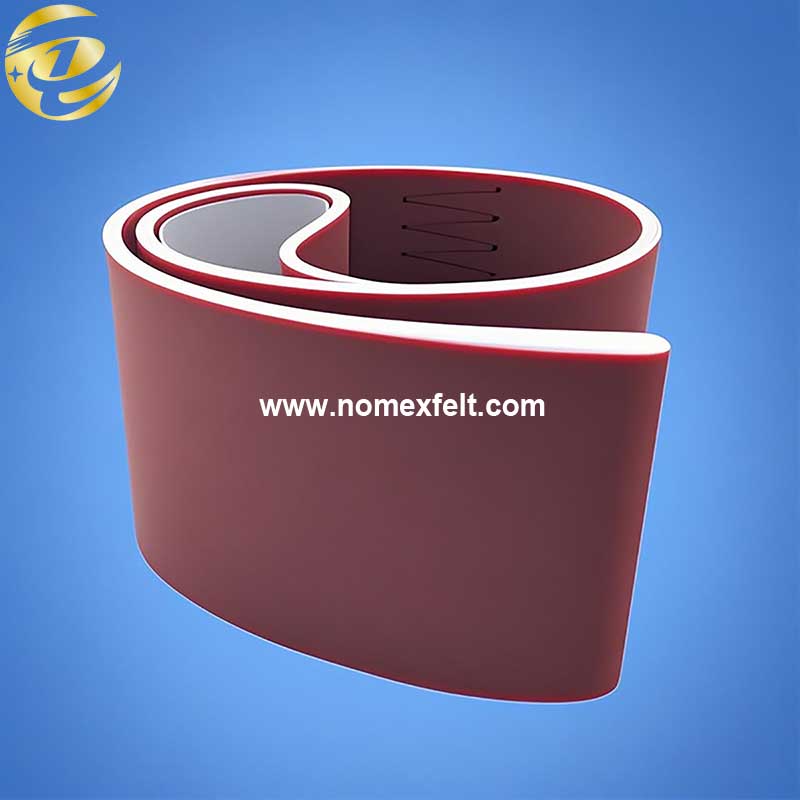

Silicone coated felt conveyor belts are specially designed by our company for transporting materials or objects with special performance requirements. The unique material properties of silicone make up for the limitations of traditional materials (such as rubber, PTFE/Teflon). The mature woven knitted felt manufacturing technology, combined with different high temperature resistant fibers as raw materials, silicone felt has a temperature resistance of 180-600 degrees.
| Brand Name： | PURE | Type： | conveyor belt |
| Material： | 100% Silicone + felt (100%polyester or 100%Nomex) | Color： | White or brownish red (dark red) |
| Endless Length | 6200mm（+/- 2%） (Customized) | width: | 1800mm, Max 3550mm (Customized) |

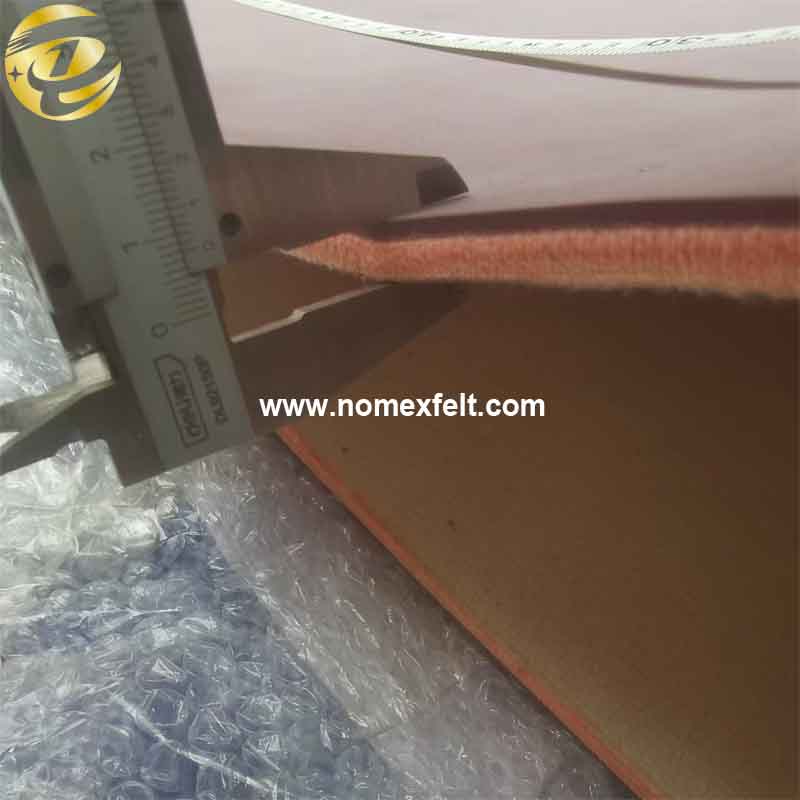

| Dimension(L*W*H)： | Customized Size | Thickness total： | 6mm-10mm (Customized) 4.5mm(silicone) (Customized) |
| Application： | Food processing machinery, electronic manufacturing equipment, textile and clothing industry machinery, automobile manufacturing equipment, special materials industry, etc. | Place of Origin： | Guangdong, China |

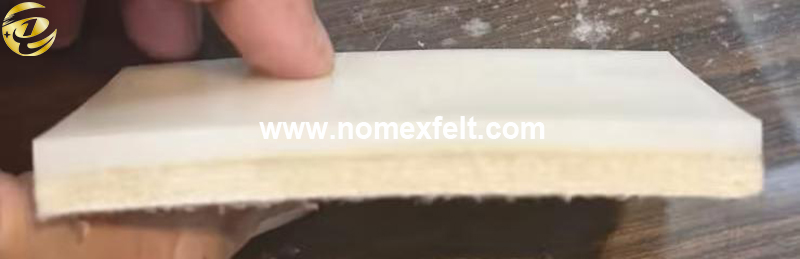

Silicone felt belt is a composite industrial conveyor belt of silicone and felt. It has both the high performance of silicone and the buffering and adsorption functions of felt. Compared with 100% felt belt, it has a wider range of usage scenarios. The following are the characteristics of silicone felt:
High & low temperature resistant Physical stability of materials under extreme temperatures (such as flexibility, hardness changes). Thermal insulating ability, the physical ability to hinder heat transfer.
Silicone felt blanket is a suitable accessory for many mechanical equipment. It can improve the quality and efficiency of your product production.
● The industrial silicone-coated felt conveyor belt manufactured by Foshan Pure Technology can use T/T, PayPal, Western Union, L/C, MoneyGram, and other payment methods.
Click the button in the bottom right corner to contact us for more payment methods.

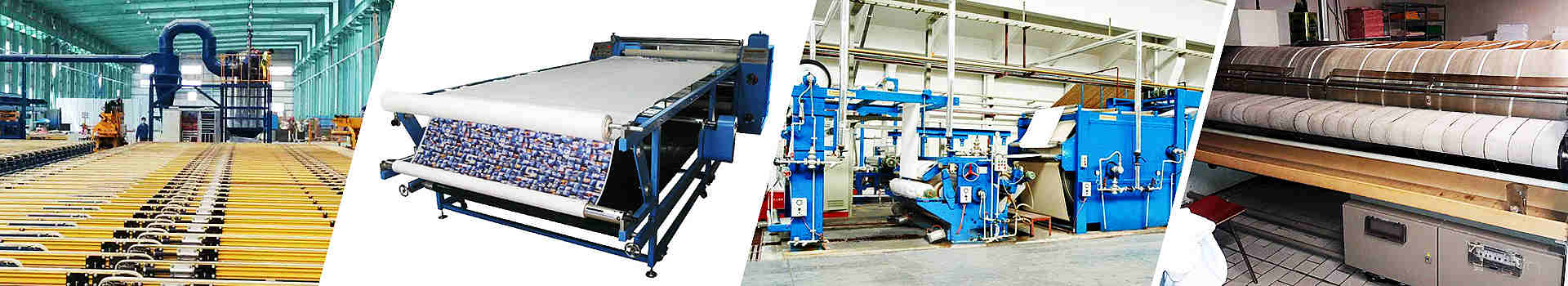

●Applied in the textile industry’s finishing machines, stentering machines, drying machines, etc., for fabric shaping and flattening, web washing machines, rotary screen printing machines, etc.

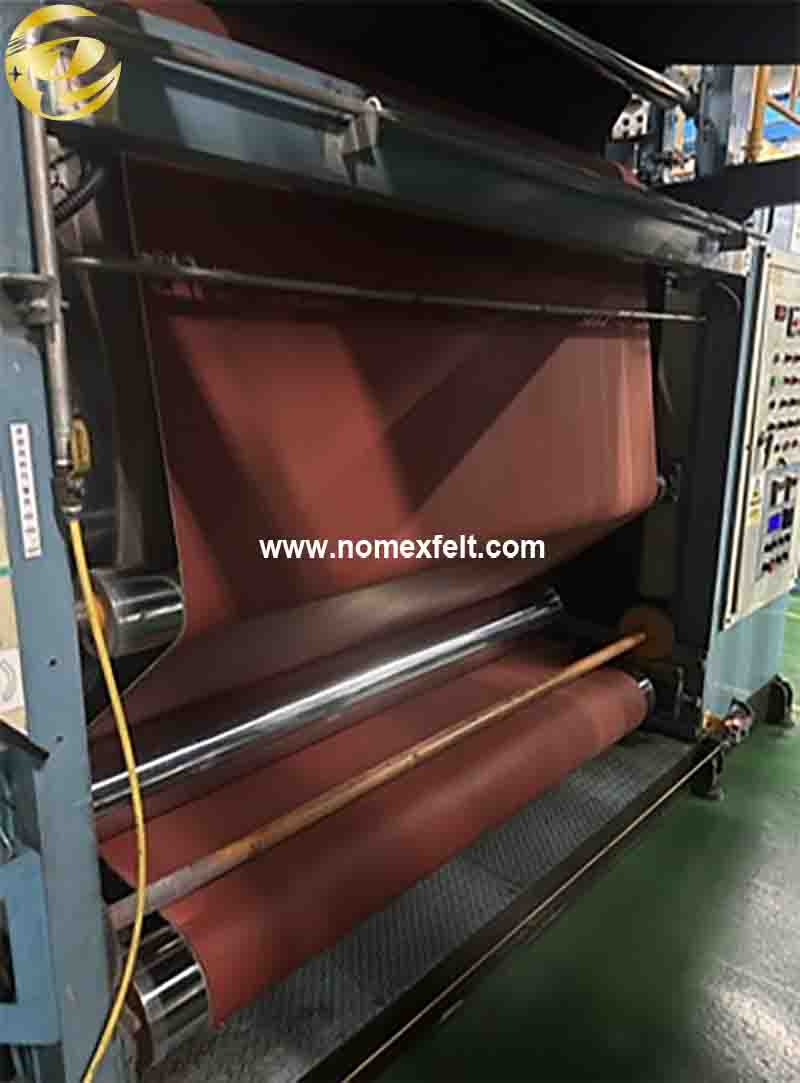

●Calendaring felt with silicon use in the textile calender machine. BISIO Menscher Dhall M-tec brand Textile Finishing Machines, mtec superfinish machine.
●Contipress is used for calendering and flattening of fabrics, improving the gloss and feel of fabrics through high temperature and high pressure.
Superfinish silicone surface: fine particles or a polished surface can be customized to evenly transmit friction and avoid scratching the fabric.
Felt layer: vibration absorption and noise reduction (reduced by 30-50dB), suitable for a precision processing environment.
Conti Decatizing seamless structure: avoid steam penetration at the seams leading to belt delamination (refer to Ammeraal seamless belt process).
Click the Right chat window to contact us now
We actively promote the modern enterprise management system and were awarded an ISO9001:2008 EWC quality system certificate, etc.

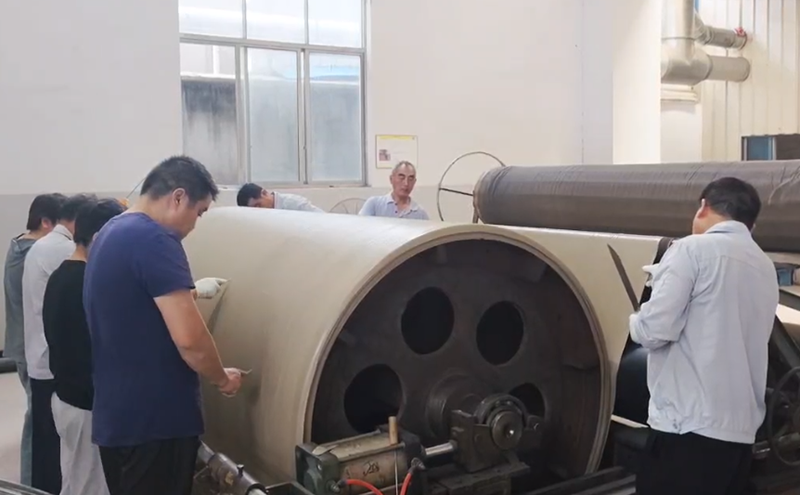

We have QC staff to inspect every process and raw material to ensure the products in good quality. Advanced equipment like mechanical needling and carding machines, etc.
Production Quality Control
Raw Material Testing: Silicone and felt fibers are RoHS, FDA, and other certifications.
Production Process Monitoring: Real-time quality inspection of key processes (vulcanization, composite lamination).
Finished Product Inspection: 100% testing of core properties such as temperature resistance, wear resistance, and tensile strength.
Support third-party testing agencies for inspection (such as SGS).
|

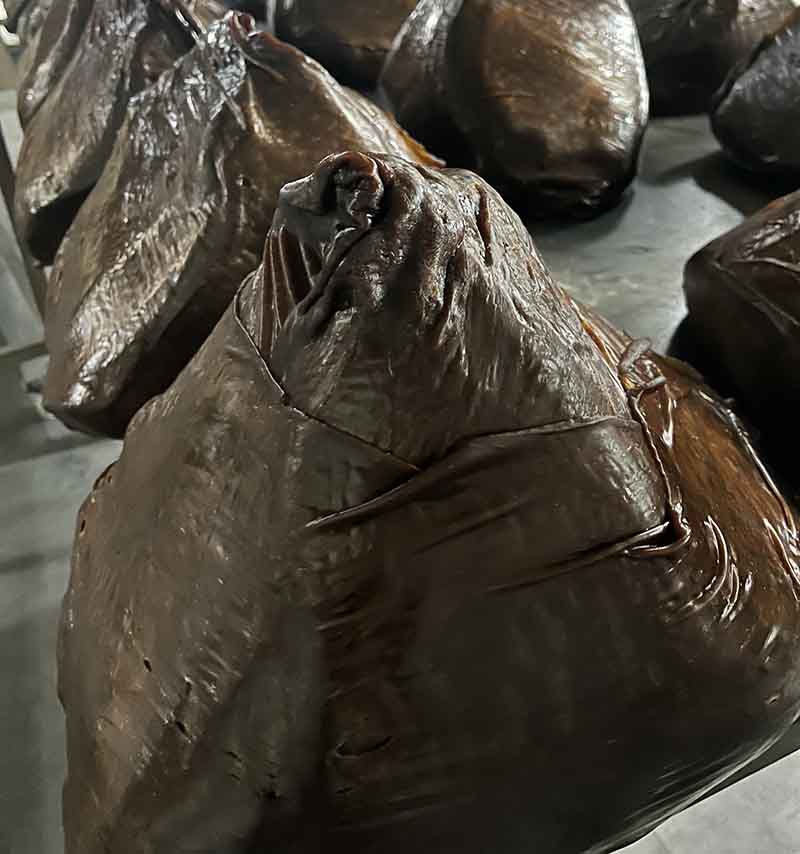

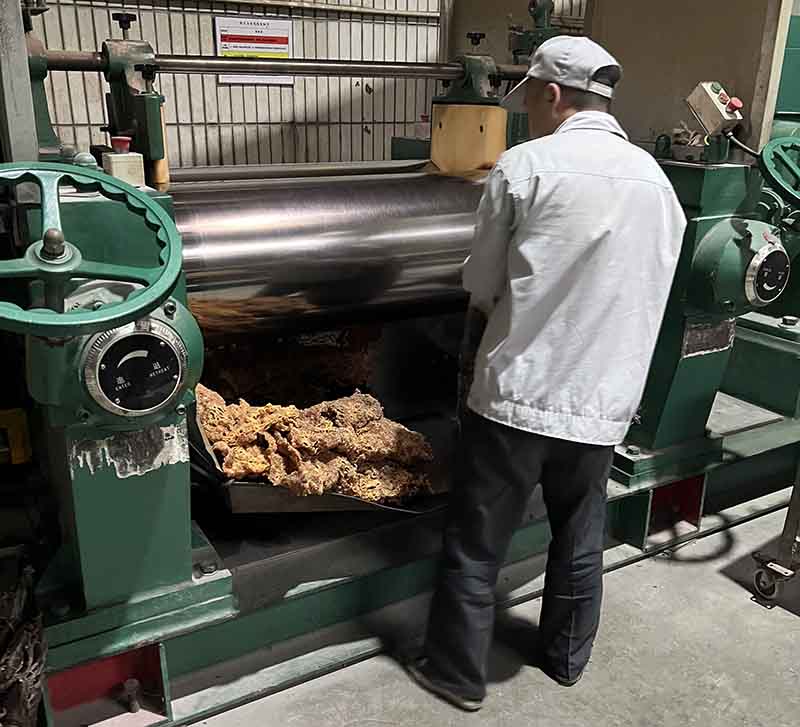

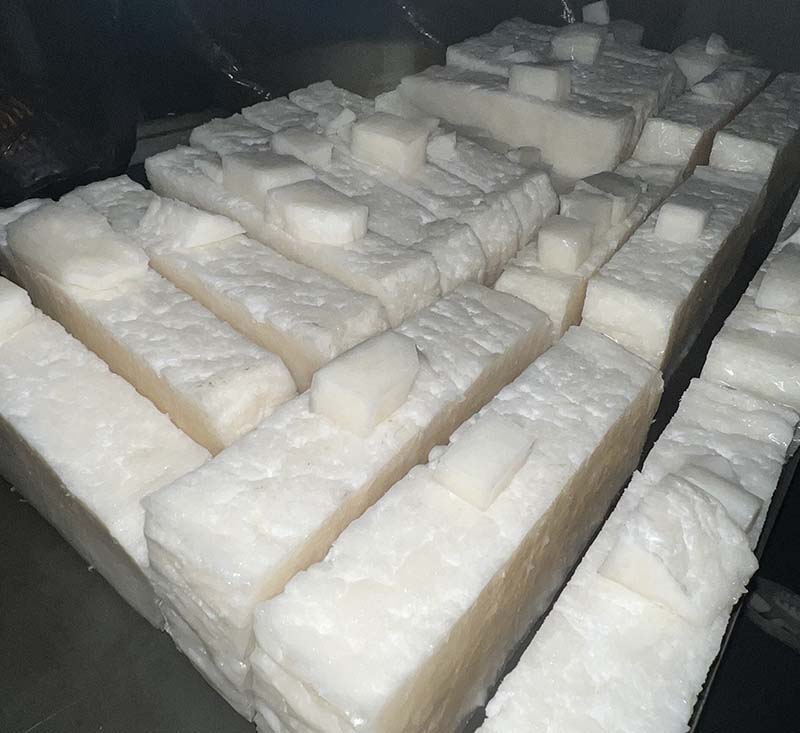

Raw material preparation Silicon is extracted from quartz sand (SiO₂) and reacted with methyl chloride to generate methylchlorosilane monomers (such as dimethyldichlorosilane). The monomers are hydrolyzed to generate silanols (Si-OH), which are then condensed to form polysiloxane linear prepolymers. Silica gel is made by polymerization modification, vulcanization molding, etc. |
 |
|
Felt pretreatment Cleaning and drying: remove dust and grease from the felt surface (ultrasonic cleaning or chemical solvent treatment), and dry until the moisture content is <1%. Surface activation: plasma treatment or chemical coating (such as silane coupling agent) to enhance the bonding strength between felt and silicone.. |
 |
|
Silicone coating and lamination Coating process: The felt is immersed in a liquid silicone tank, and the immersion time and pulling speed are controlled to ensure that the silicone penetrates the fiber gap. Scrapping/spraying method: The silicone is evenly applied to one or both sides of the felt, with a thickness accuracy of ±0.1mm. Lamination: When laminating multiple layers, the layers are bonded layer by layer through a hot pressing roller (temperature 80~120℃) to avoid bubbles. |
 |
|
Vulcanization molding First stage vulcanization: Second stage vulcanization (optional): |
 |
|
|
|
|
|
Package And Transport

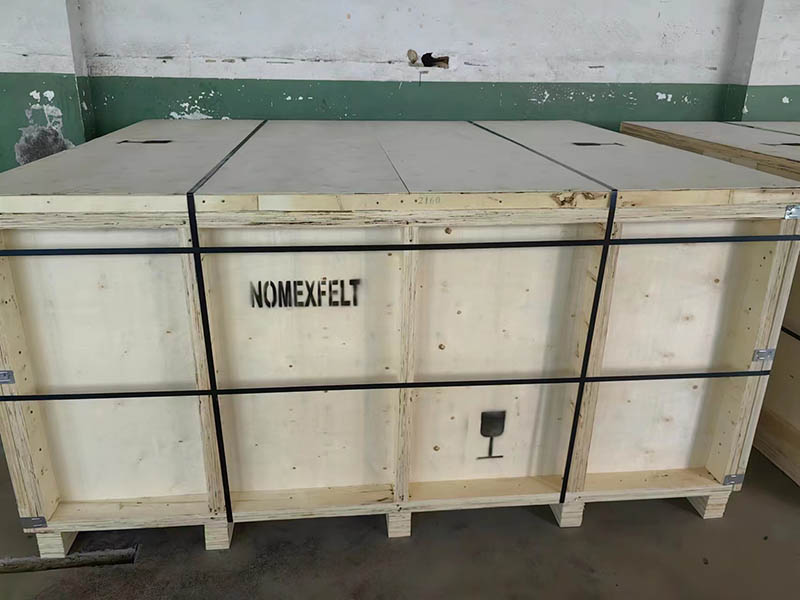

Our company’s Silicone Conveyor Belt with Felt is packaged in wooden boxes in the textile industry. Wooden box packaging has the following advantages:
●The professional technical team provides customer service for customized conveyor belt specifications (size, hardness, temperature resistance, etc.) based on the silicone felt specifications and requirements provided by your needs. Adapt to specific machinery or production environment. Design and manufacture products that meet the requirements.
●Provide free samples, provide online answers to questions such as product use, maintenance, and care (such as application scenario optimization of high-temperature resistant silicone conveyor belts, mechanical solutions, and even industry supporting product supply.
● Professional procurement Services Team, we often sell silicone conveyor belts and have met many friends in the textile industry. Cooperative customers can purchase textile machines,
such as calendar machines, fabric pleating machines, heat transfer printing machines, Sanforizing machines, Compacting machines, ribbon transfer printing machine, heat press machines. reduce trouble and get a preferential price.
A: Felt conveyor belt can keep the logistics stable. After adding silicone coating, it is also called a silicone felt blanket. Silicone Conveyor Belt with felt
A: Silicone Belt has the following features:
●High-temperature resistance, able to maintain stable performance under the action of high-temperature steam.
●Wear resistance, able to withstand long-term friction and pressure, not easily deformed or broken.
●Good elasticity, able to adapt to different thicknesses and textures of fabrics, provides a uniform shrinkage rate.
●Smooth surface, will not cause damage or pollution to fabrics.
A: Commonly used fabrics for conveyor belts are nylon, fluorocarbon, and glass fiber, while silicone felt uses 100% industrial-grade silicone. The hardness, color, and functional additives (such as flame retardants and antistatic agents) are adjusted according to needs. It is combined with polyester or aramid fibers to improve high-temperature resistance and flame retardancy.
| Type | Main ingredient differences | Features and applications |
| Synthetic silica gel | Chemically synthesized siloxane polymer | Heat resistance up to 300℃ (400℃ instantaneous), strong acid and alkali resistance, high mechanical strength (tensile strength 8-12MPa) |
| Liquid Silicone Rubber (LSR) | Low viscosity polysiloxane + platinum catalyst | Good fluidity, used for precision injection molding (such as baby pacifiers, medical devices). |
| Multi-layer composite structure | Silicone + polyester/aramid fiber reinforcement layer | Tear resistance increased by 200%, pressure resistance up to 50kPa, customizable conductive/antistatic function |
| Conductive silicone tape | Carbon nanotube/graphene composite silicone | Surface resistance 10³-10⁶Ω, static decay time <0.1 seconds, arc resistance ≥120 seconds |
Tips: Calender machine, Sanforizing, Compacting.
